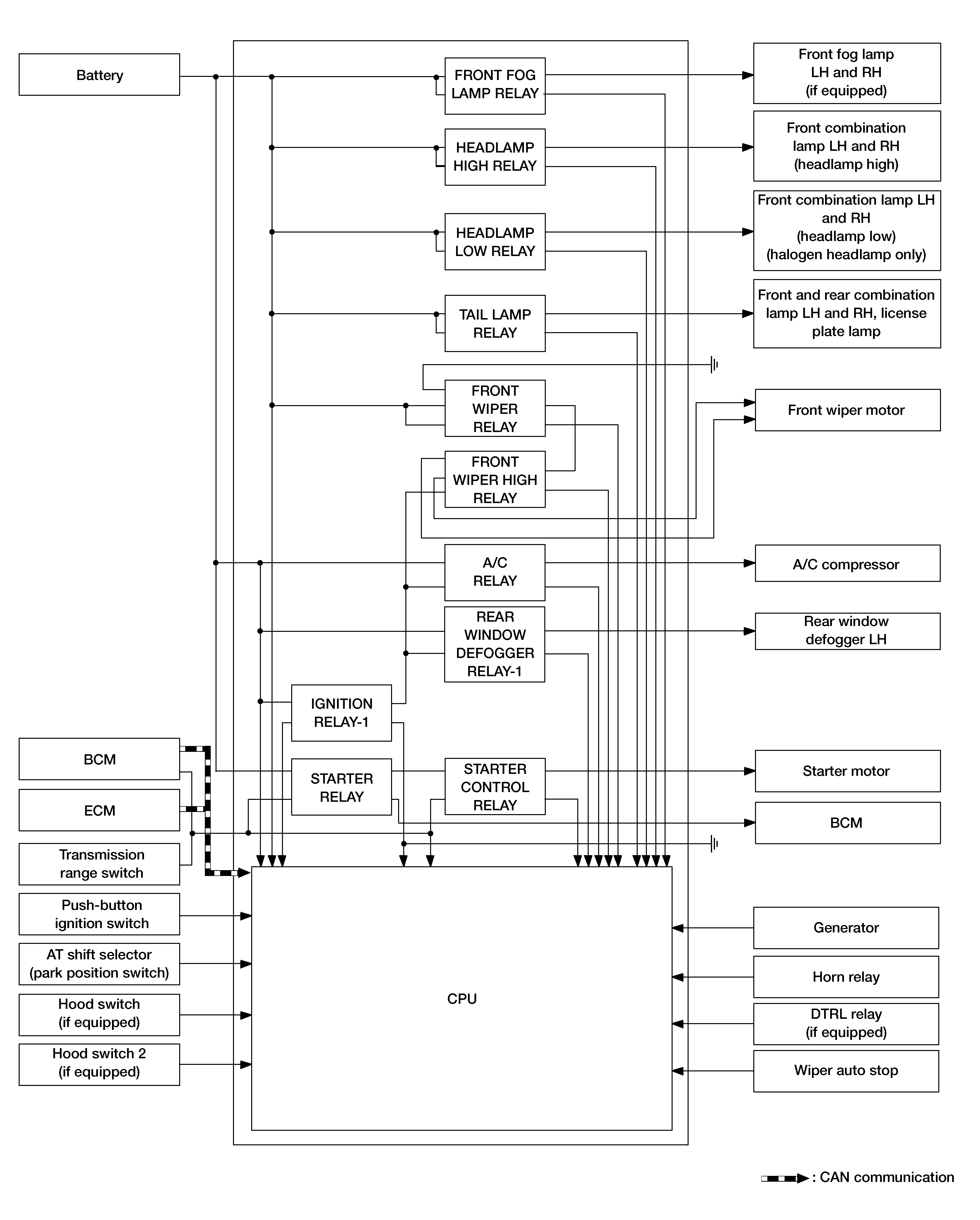

System Diagram - With VK56VD

WARNING: This page is about a different car, the 2019 Nissan Titan XD and 2019 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.
GNSAWMIA0048GB-048Courtesy of NISSAN NORTH AMERICA, INC.
