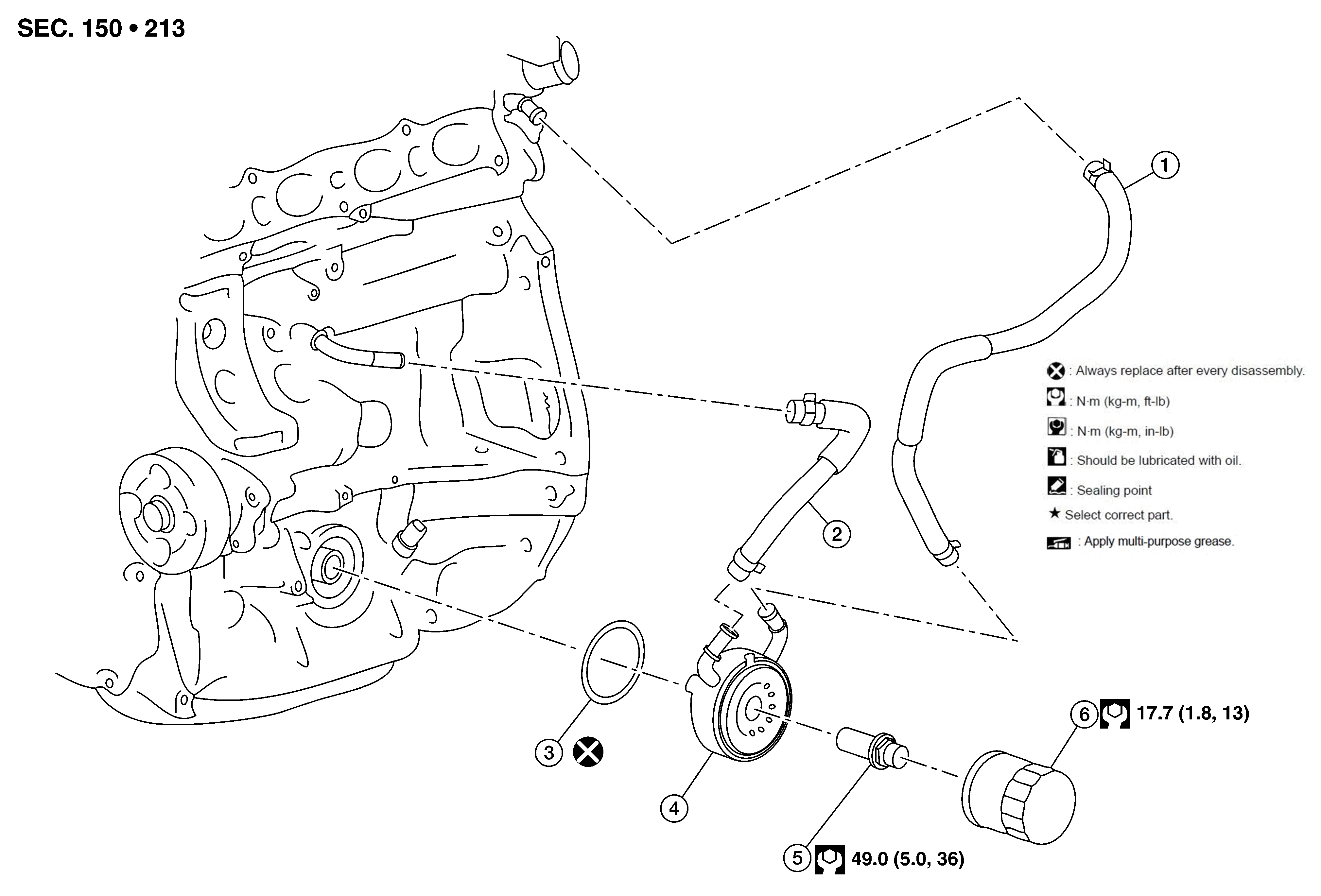

Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Oil cooler hose
|
2.
|
Oil cooler hose
|
3.
|
O-ring
|
|
4.
|
Oil cooler
|
5.
|
Connector bolt
|
6.
|
Oil filter
|
WARNING:
Make sure engine is cool before performing this operation.
NOTE:
When removing components such as hoses, tube/lines, ect., cap or plug openings to prevent fluid from spilling.
