Exploded View: Removal

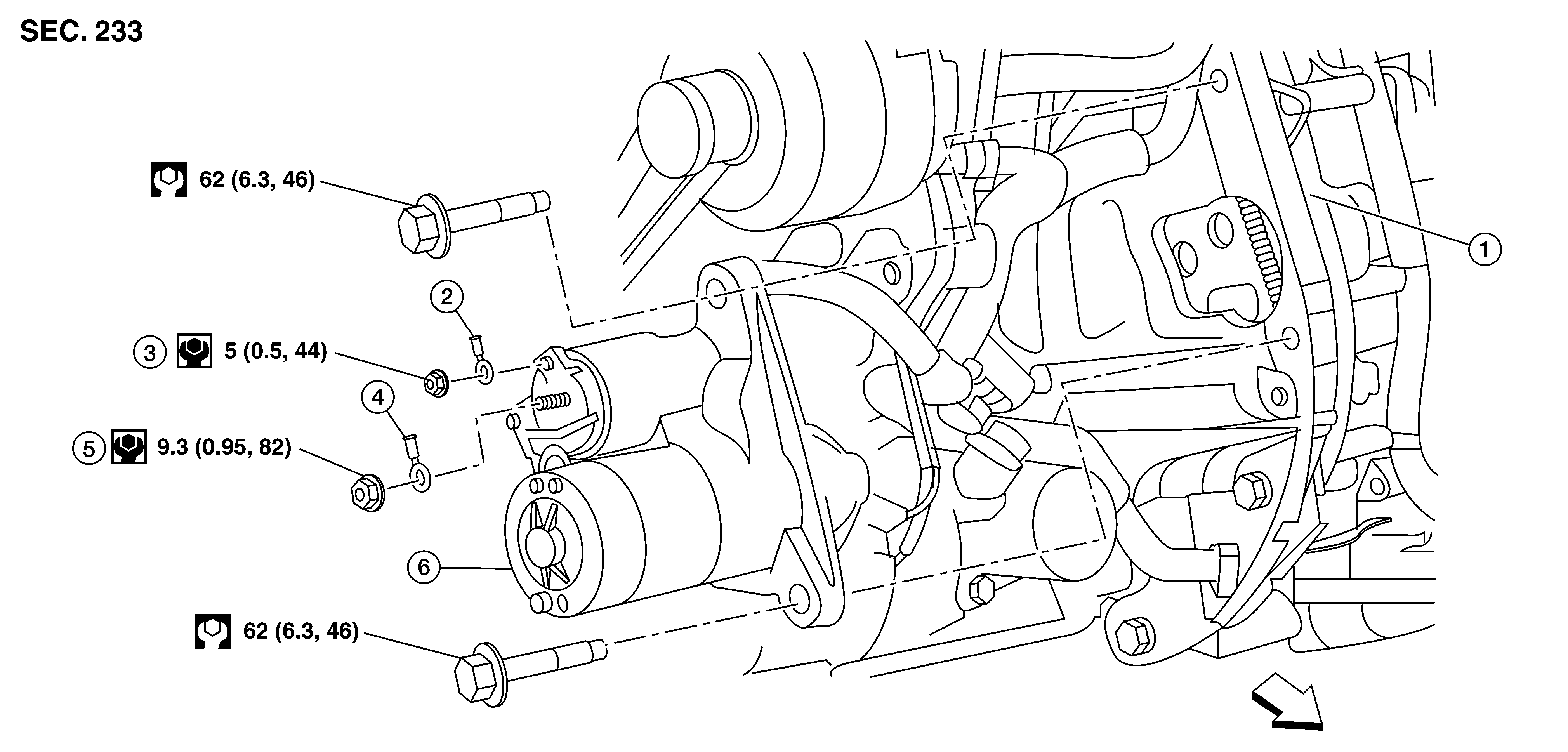

Fig 1: Starter Motor Components With Torque Specification
GNSALBIA1032Z-032SYMBOLCourtesy of NISSAN NORTH AMERICA, INC.

1.

Cylinder block

2.

Terminal S harness

3.

Terminal S nut

4.

Terminal B harness

5.

Terminal B nut

6.

Starter motor

SYMBOL

Front
