Component Location

1.

Driver air bag module

2.

Air bag diagnosis sensor unit

(view with instrument lower center cover removed)

3.

Front passenger air bag module

4.

Spiral cable

(view with steering wheel removed)

5.

Combination meter

6.

Crash zone sensor

(view with front grill removed)

7.

Front LH seat belt pre-tensioner (RH similar)

(view with lower center pillar cover removed)

8.

Front side air bag satellite sensor LH (RH similar)

(view with front LH seat belt pre-tensioner removed)

9.

Front LH side air bag module (RH similar)

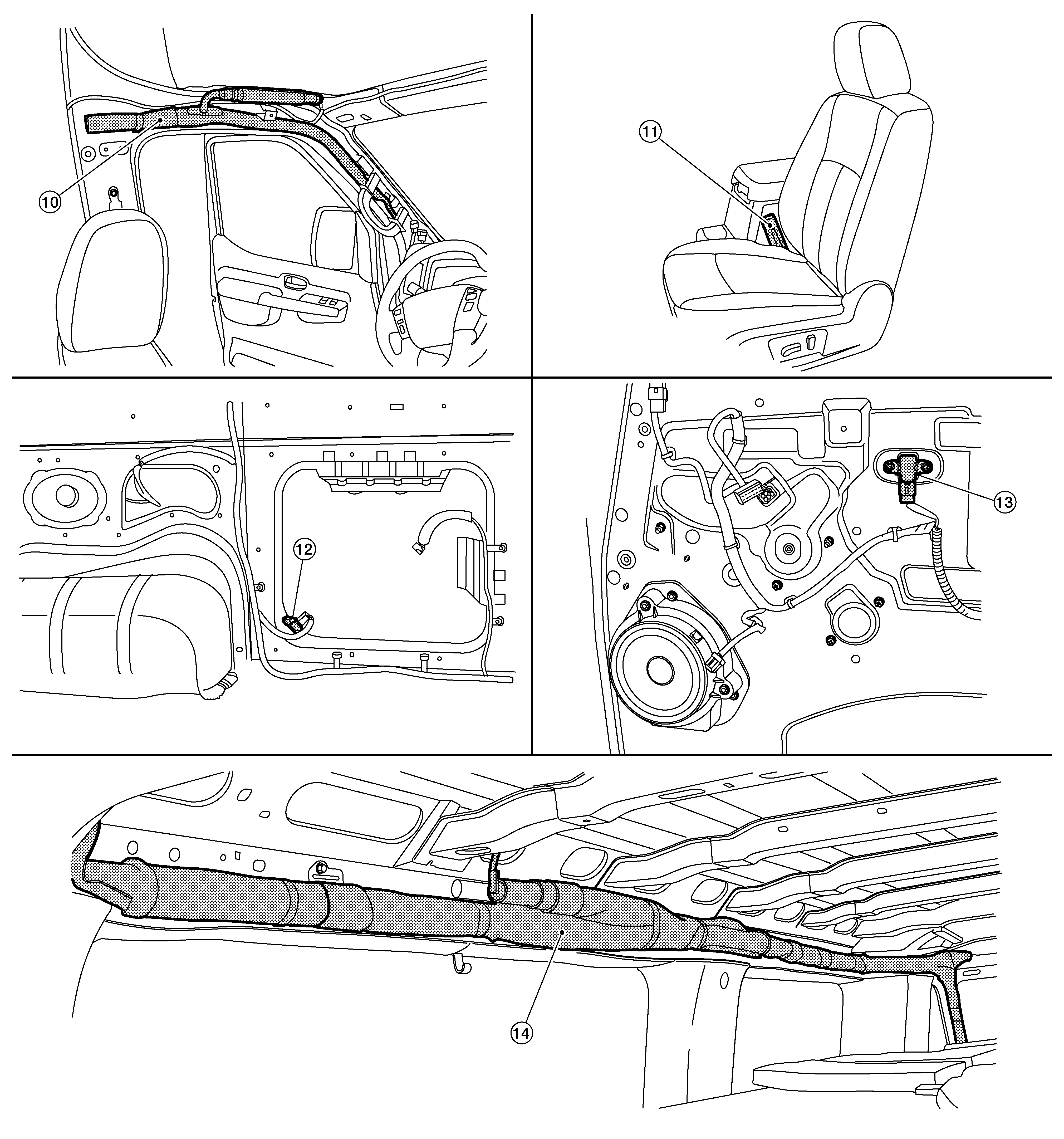

10.

LH side front curtain air bag module (RH similar)

(view with headliner and A-pillar trim removed)

11.

Seat belt buckle switch LH

(RH similar)

12.

Rear side air bag satellite sensor LH (If equipped)

(view with lower luggage finish panel removed)

13.

Front door satellite sensor RH (LH similar)

14.

LH side rear curtain air bag module (RH similar) (If equipped)

(view with headliner, upper and lower luggage finish panels removed)
