Exploded View

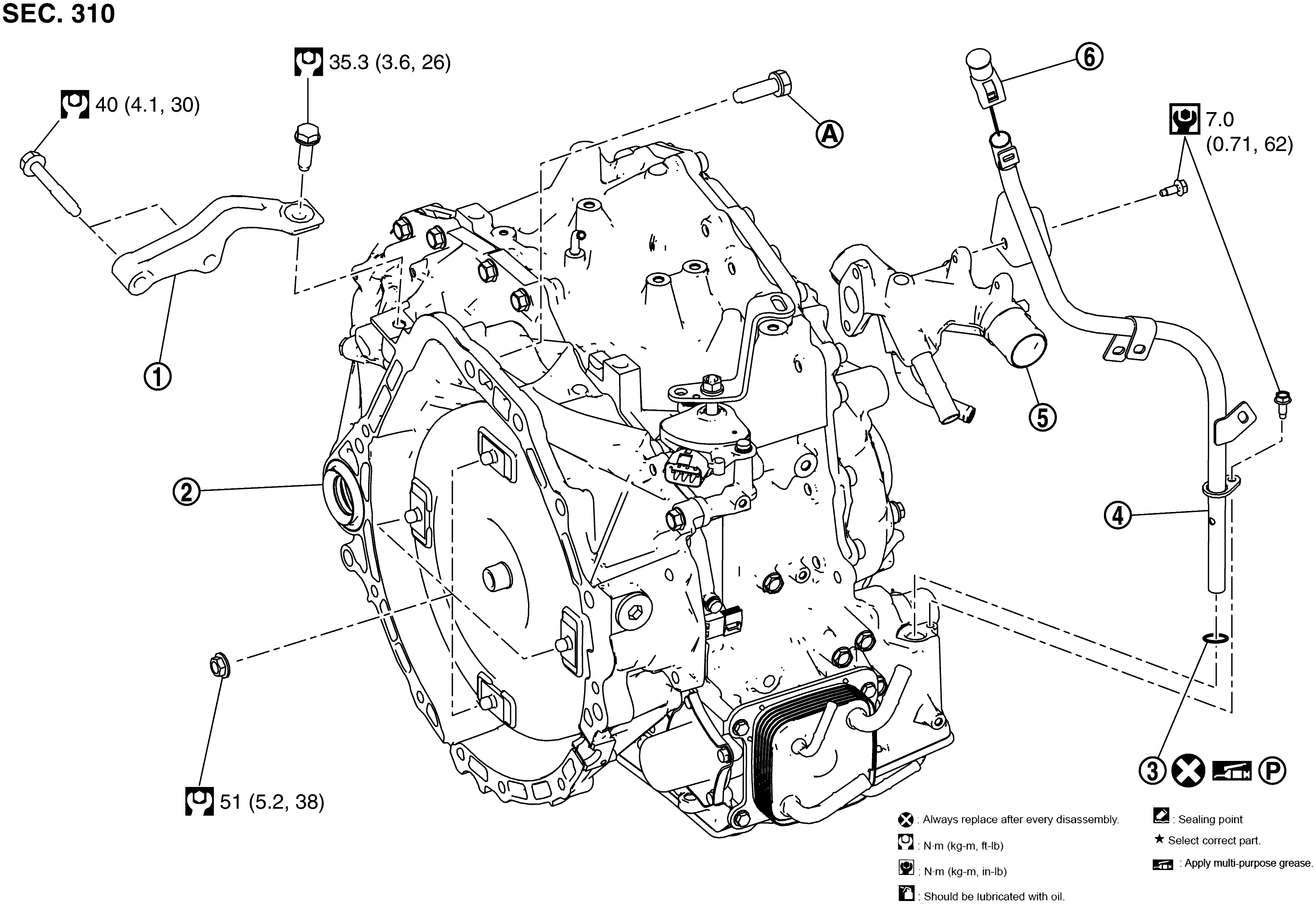

Fig 1: Exploded View Of Transaxle Assembly With Torque Specification

GNSJSDIA3922GB-922

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Gusset	2.	Transaxle assembly	3.	O-ring
4.	CVT fluid charging pipe	5.	Water outlet	6.	CVT fluid charging pipe cap
A.	Refer to INSTALLATION .
