CVT Fluid Level Check: Notes

  1. Park the vehicle on a level surface with the engine running and parking brake set.
  2. Using CONSULT, ensure that the CVT fluid temperature is between 170 deg.F to 180 deg.F (77 deg.C to 82 deg.C).
  3. Shift the transmission into REVERSE for 5 seconds.
  4. Shift the transmission into DRIVE for 5 seconds.
  5. Shift the transmission into REVERSE for 5 seconds.
  6. Shift the transmission into PARK.

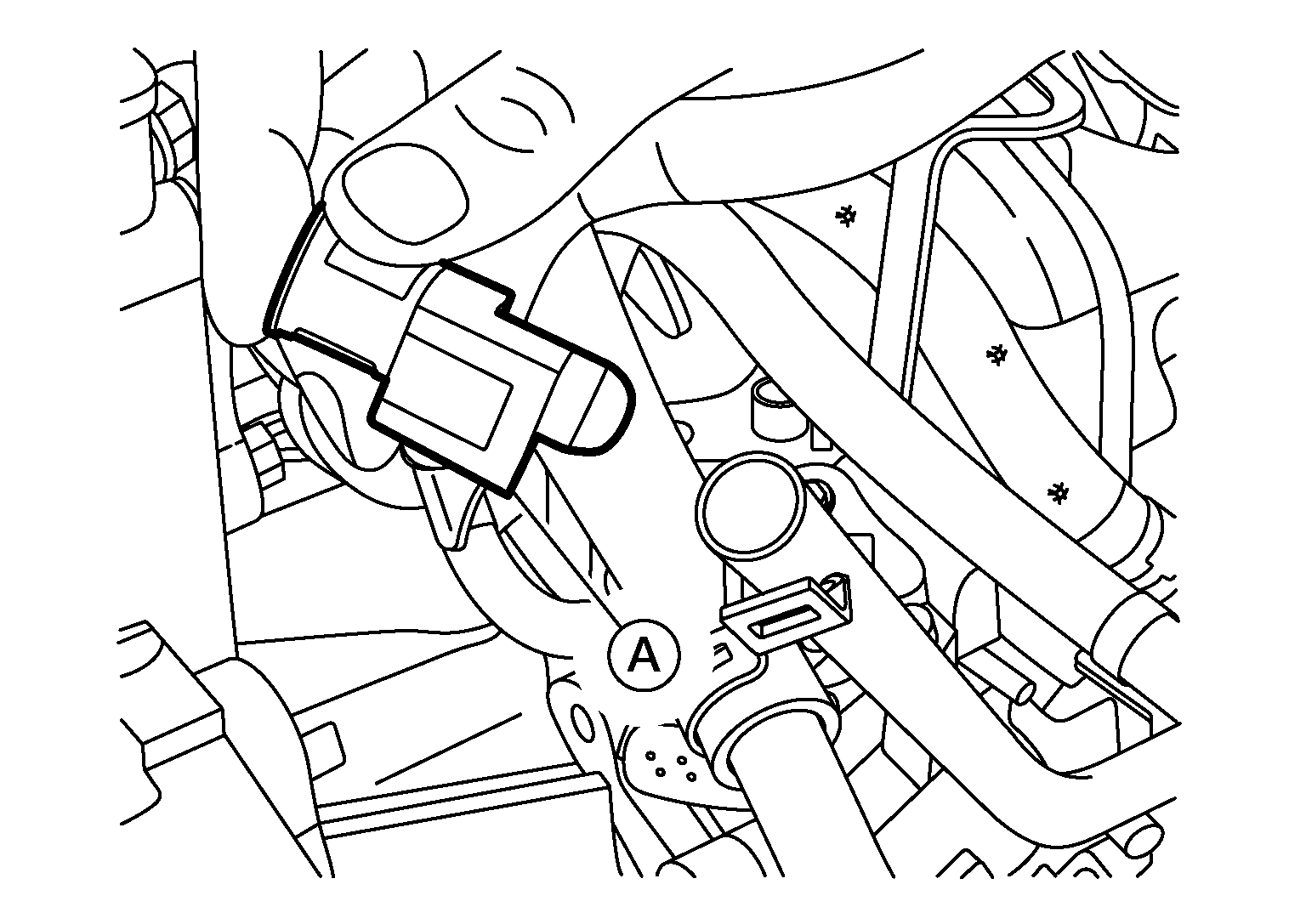

  7. Remove cap (A) using Tool.

    Tool

    : (J-52611)
    GNSALDIA0432Z-432Courtesy of NISSAN NORTH AMERICA, INC.

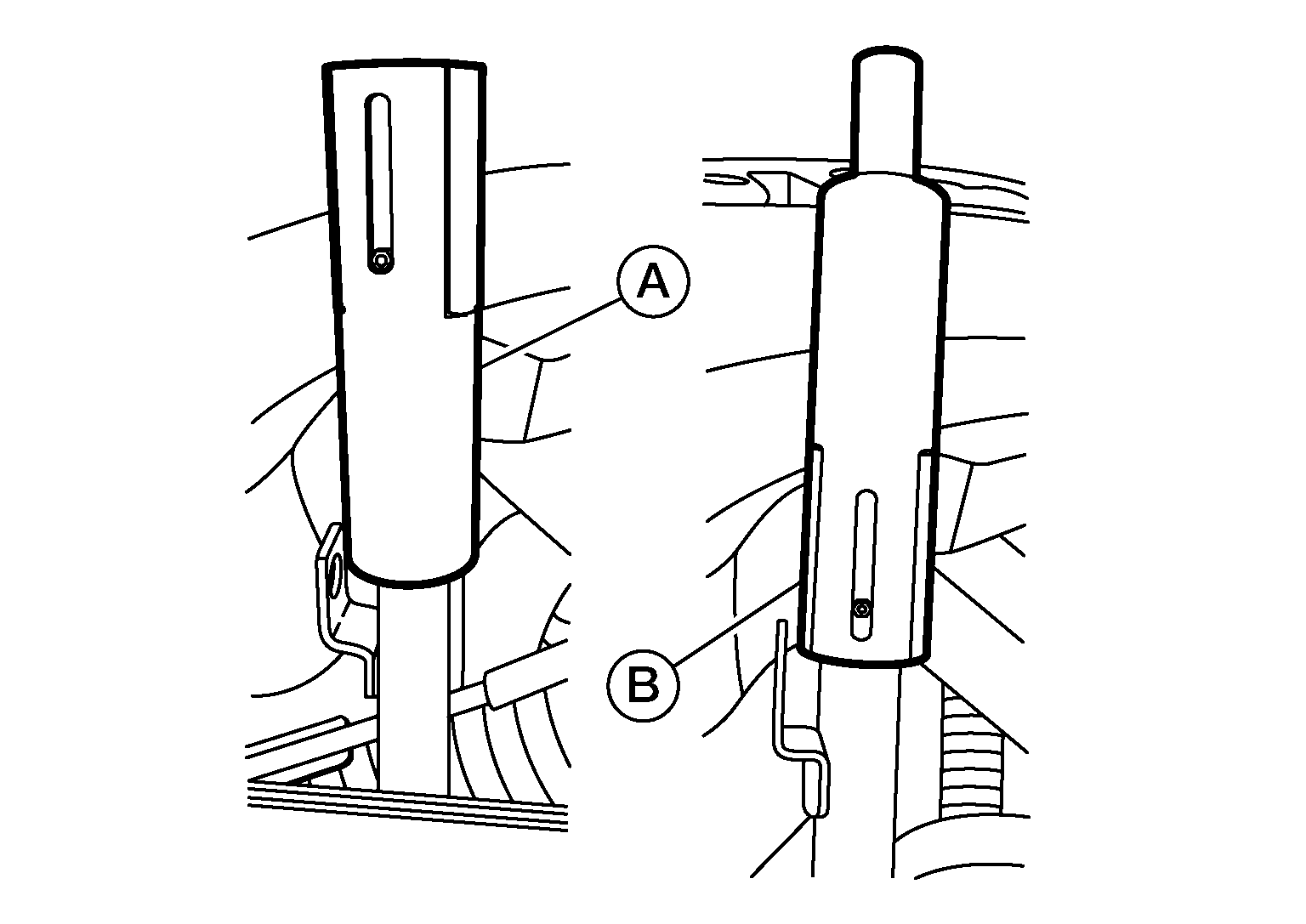

  8. With the vehicle in PARK and the engine running, insert Tool into the CVT fluid pipe.

    Tool

    : (J-51155)
    NOTE: The handle on the Tool has two positions, verify Tool is in red position (B) and not blue position (A).
    GNSALDIA0434Z-434Courtesy of NISSAN NORTH AMERICA, INC.
  9. Inspect Tool to determine the CVT fluid level.
    GNSDB116212Courtesy of NISSAN NORTH AMERICA, INC.

    Tool

    : (J-51155)

    CVT fluid level

    : 14 - 22 mm (0.55 - 0.87 in)
