Exploded View

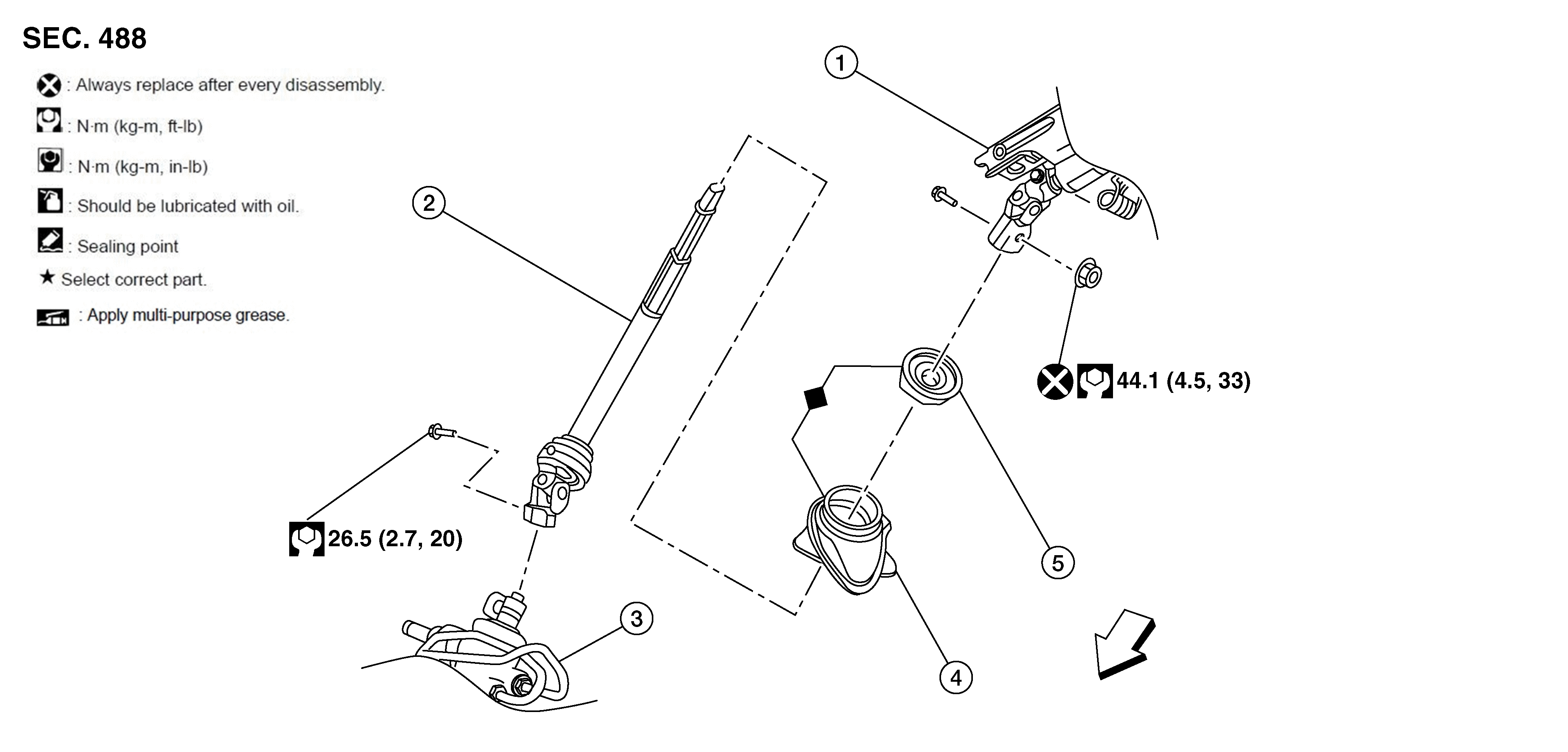

Fig 1: Lower Joint Components With Torque Specification
GNSAWGIA0377Z-377Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column

2.

Lower joint

3.

Steering gear

4.

Hole cover

5.

Hole cover seal

SYMBOL

Replace as a set.

SYMBOL

Front
