Exploded View

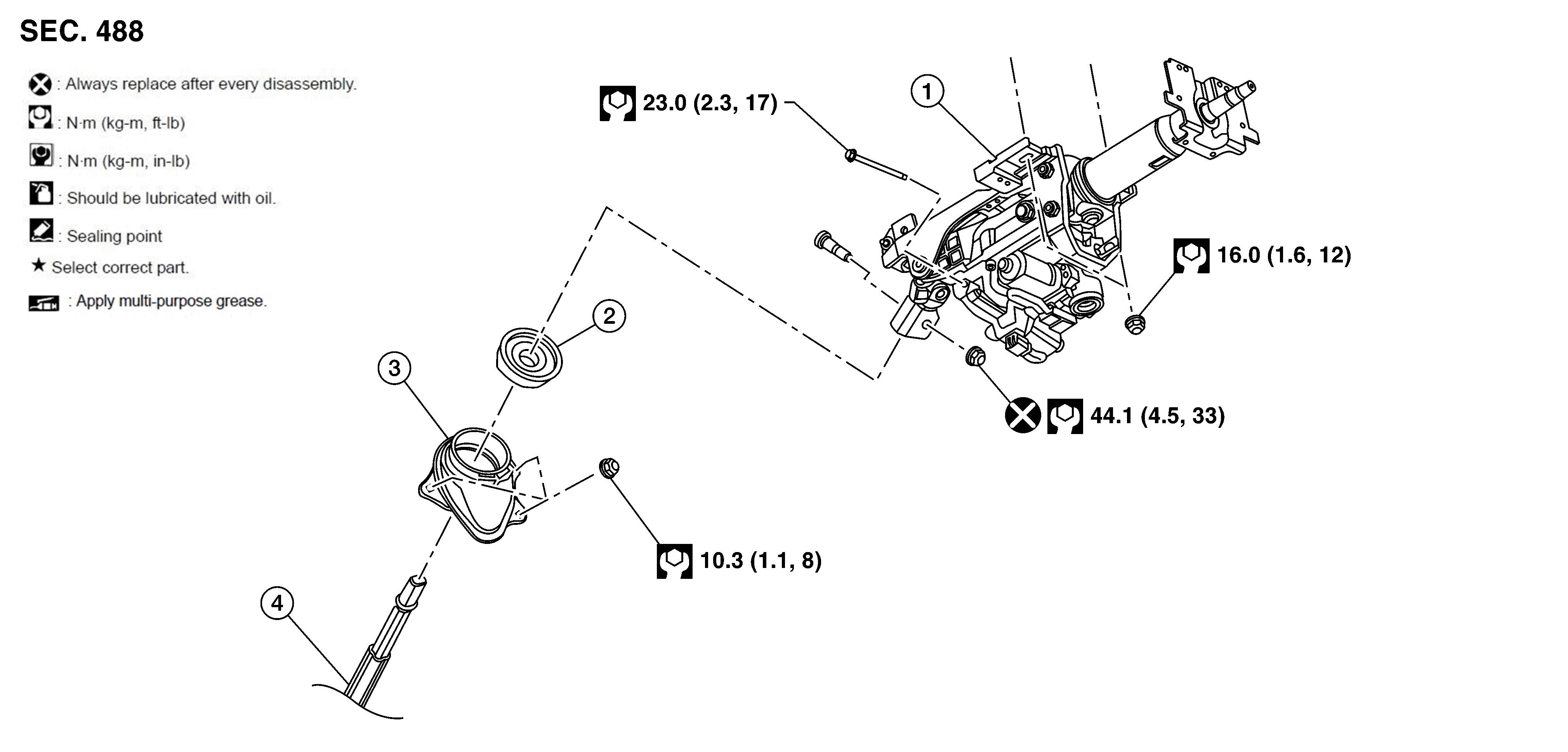

Fig 1: Electric Steering Column Components With Torque Specification
GNSAWGIA0382Z-382Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column

2.

Hole cover seal

3.

Hole cover

4.

Lower joint

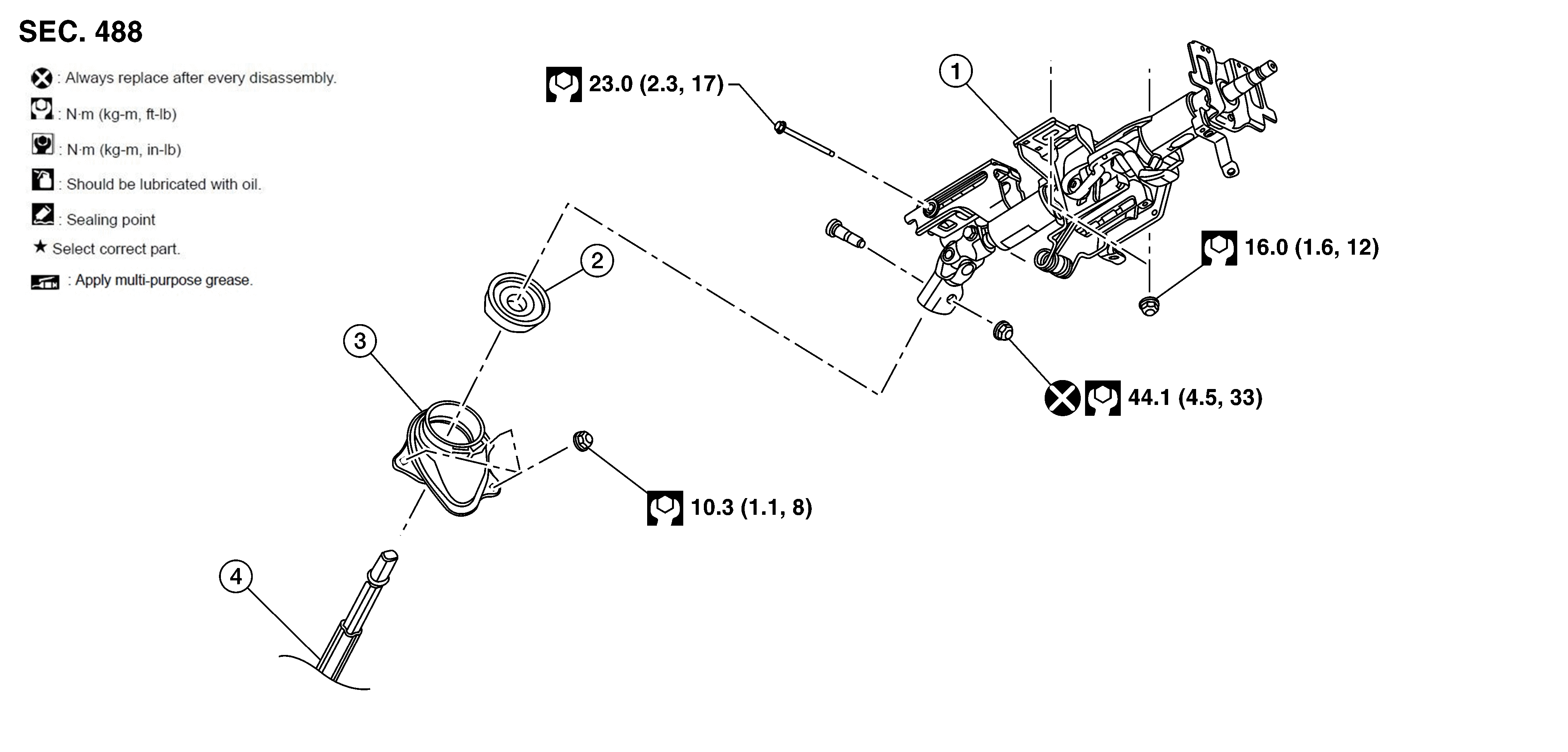

Fig 2: Mechanical Steering Column Components With Torque Specification
GNSAWGIA0383Z-383Courtesy of NISSAN NORTH AMERICA, INC.

1.

Steering column

2.

Hole cover seal

3.

Hole cover

4.

Lower joint
