Exploded View

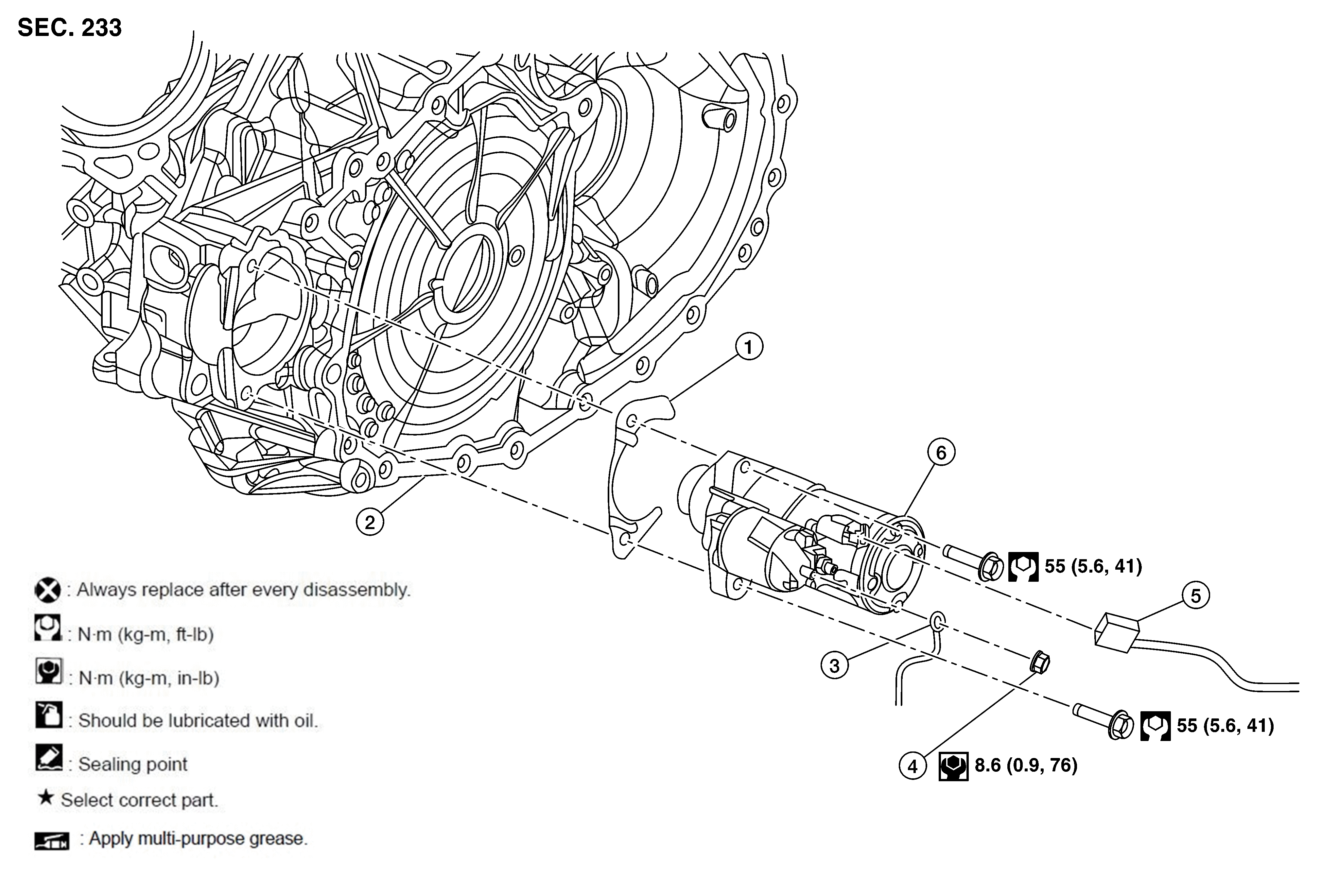

Fig 1: Starter Motor Components With Torque Specification
GNSAWBIA2722Z-722Courtesy of NISSAN NORTH AMERICA, INC.

1.

Shim

2.

Converter housing

3.

"B" terminal harness

4.

"B" terminal nut

5.

Starter harness connector

6.

Starter motor
