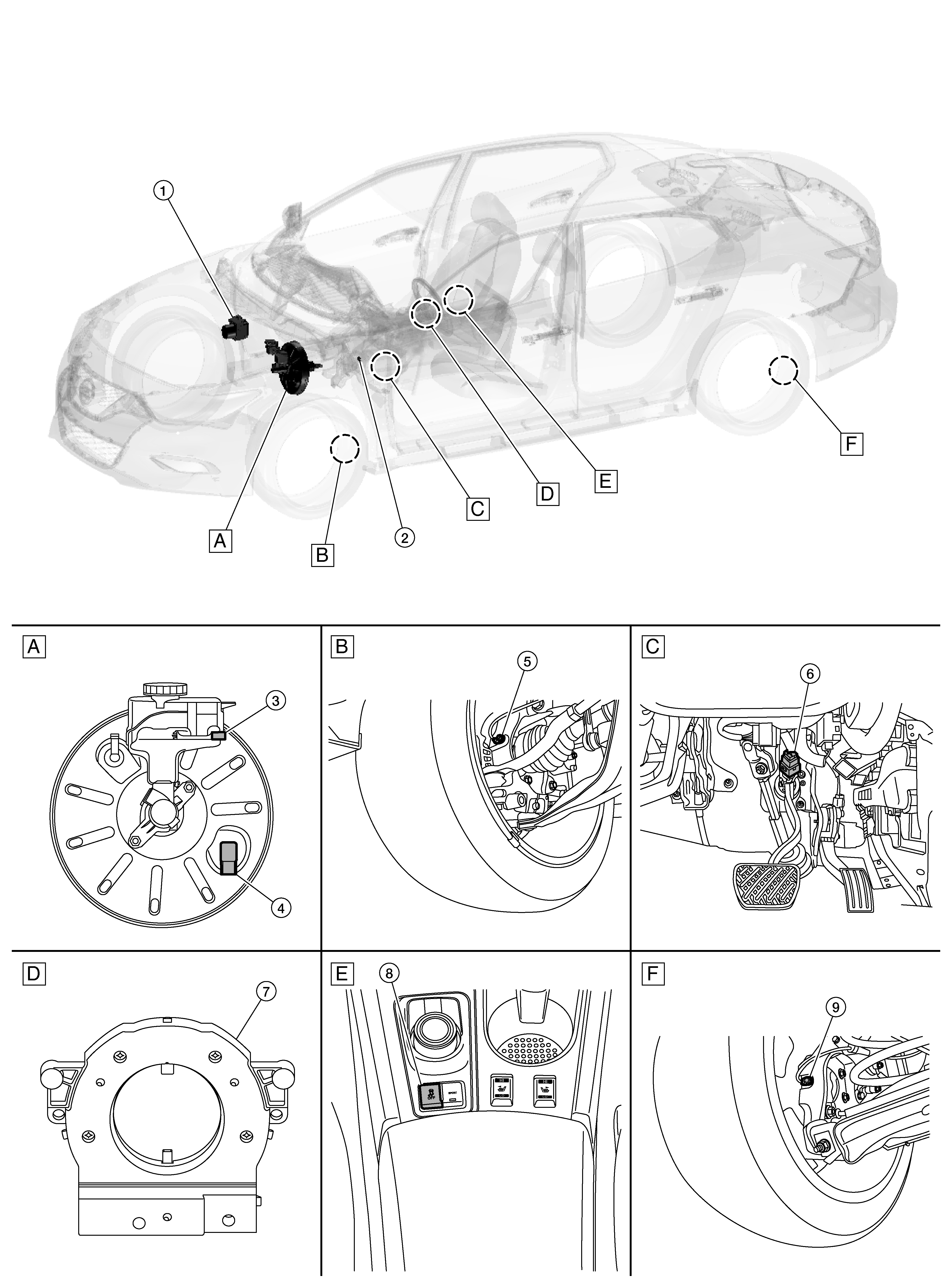

Component Location
|
A. |
View with brake booster assembly removed |
B. |
Left front wheel area |
C. |
Brake pedal area |
|
D. |
View of steering angle sensor removed |
E. |
Front of center console |
F. |
Left rear wheel area |
|
No. |
Component parts |
Function |
|
1. |
ABS actuator and electric unit (control unit) |
|
|
2. |
Parking brake switch |
|
|
3. |
Brake fluid level switch |
|
|
4. |
Vacuum sensor |
|
|
5. |
Front LH wheel sensor |
|
|
6. |
Stop lamp switch |
|
|
7. |
Steering angle sensor |
|
|
8. |
Drive mode selector (VDC OFF switch) |
|
|
9. |
Rear LH wheel sensor |
