Front Regulator
>>

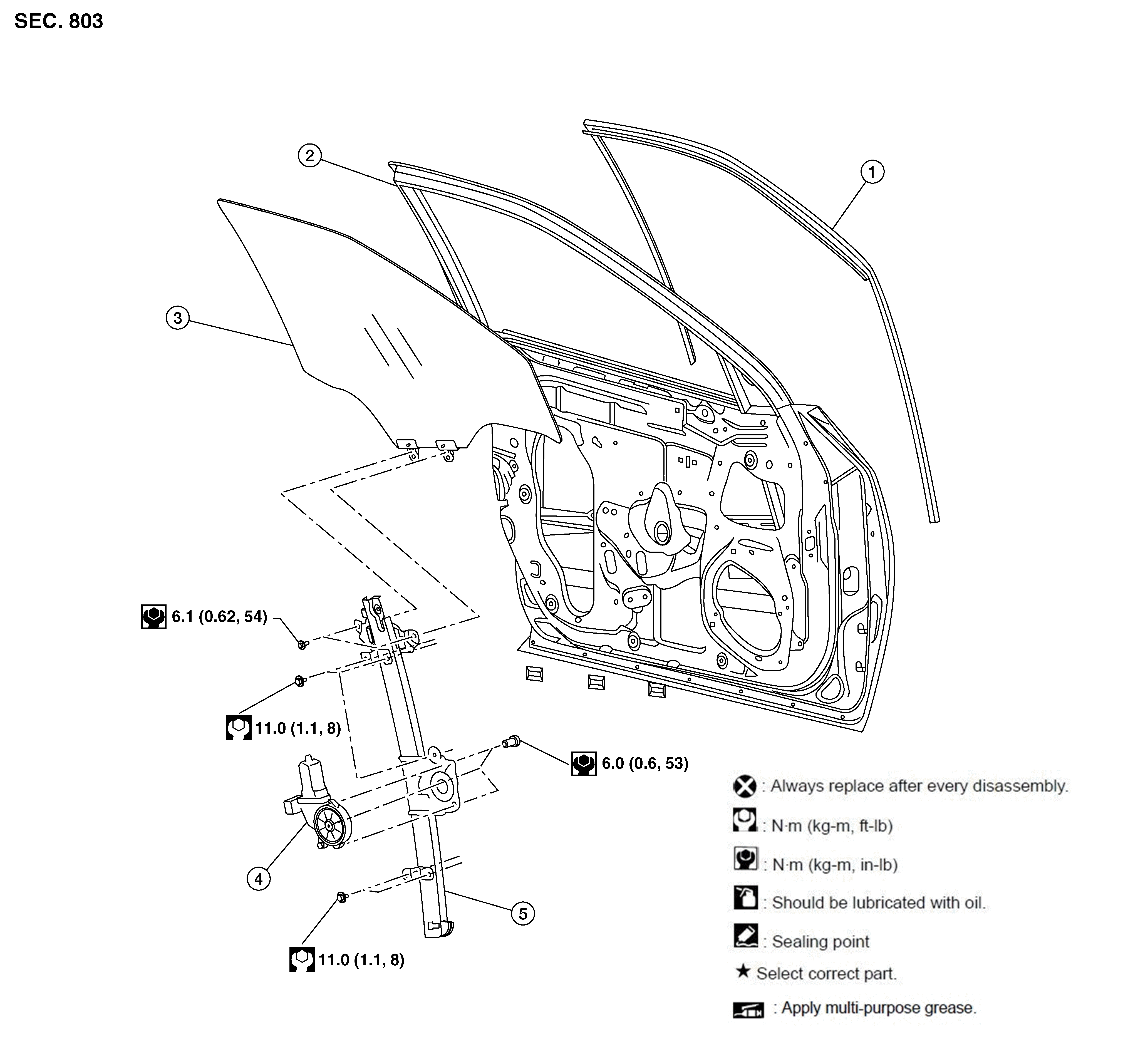

Exploded View
Exploded View
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Door glass rubber run
2.
Door
3.
Door glass
4.
Front power window motor
5.
Door glass regulator
Courtesy of NISSAN NORTH AMERICA, INC.
