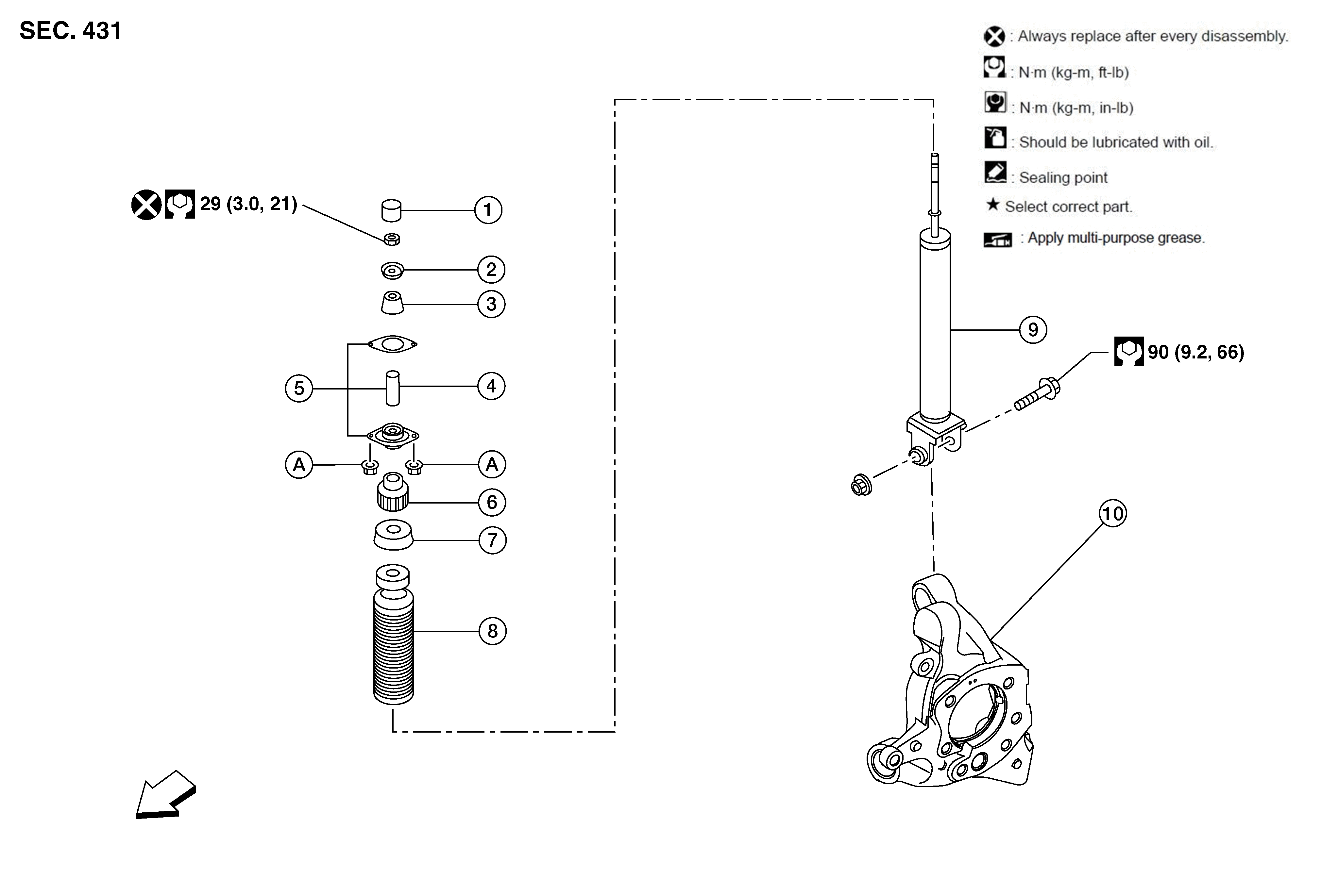

Exploded View

1.

Cap

2.

Washer

3.

Upper shock bushing

4.

Distance tube

5.

Shock absorber mount bracket

6.

Lower shock bushing

7.

Bound bumper cover

8.

Bound bumper

9.

Shock absorber

10.

Rear knuckle

A

Refer to Removal and Installation .

Front
