Exploded View

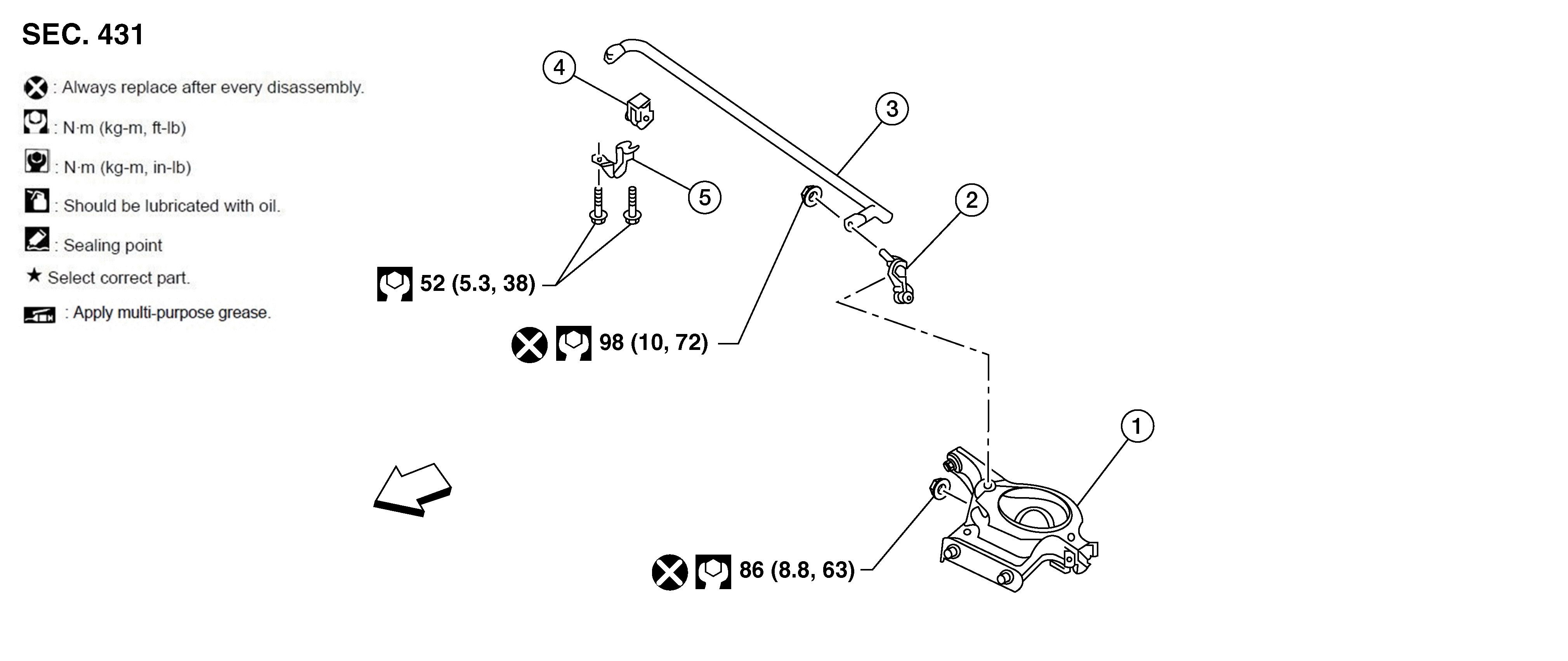

Fig 1: Rear Stabilizer Components With Torque Specification
GNSALEIA0105Z-105Courtesy of NISSAN NORTH AMERICA, INC.

1.

Rear lower link

2.

Connecting rod

3.

Rear stabilizer

4.

Rear stabilizer bushing

5.

Rear stabilizer clamp

SYMBOL

Front
