Disassembly and Assembly: Assembly

Assembly is in the reverse order of disassembly.

Courtesy of NISSAN NORTH AMERICA, INC.

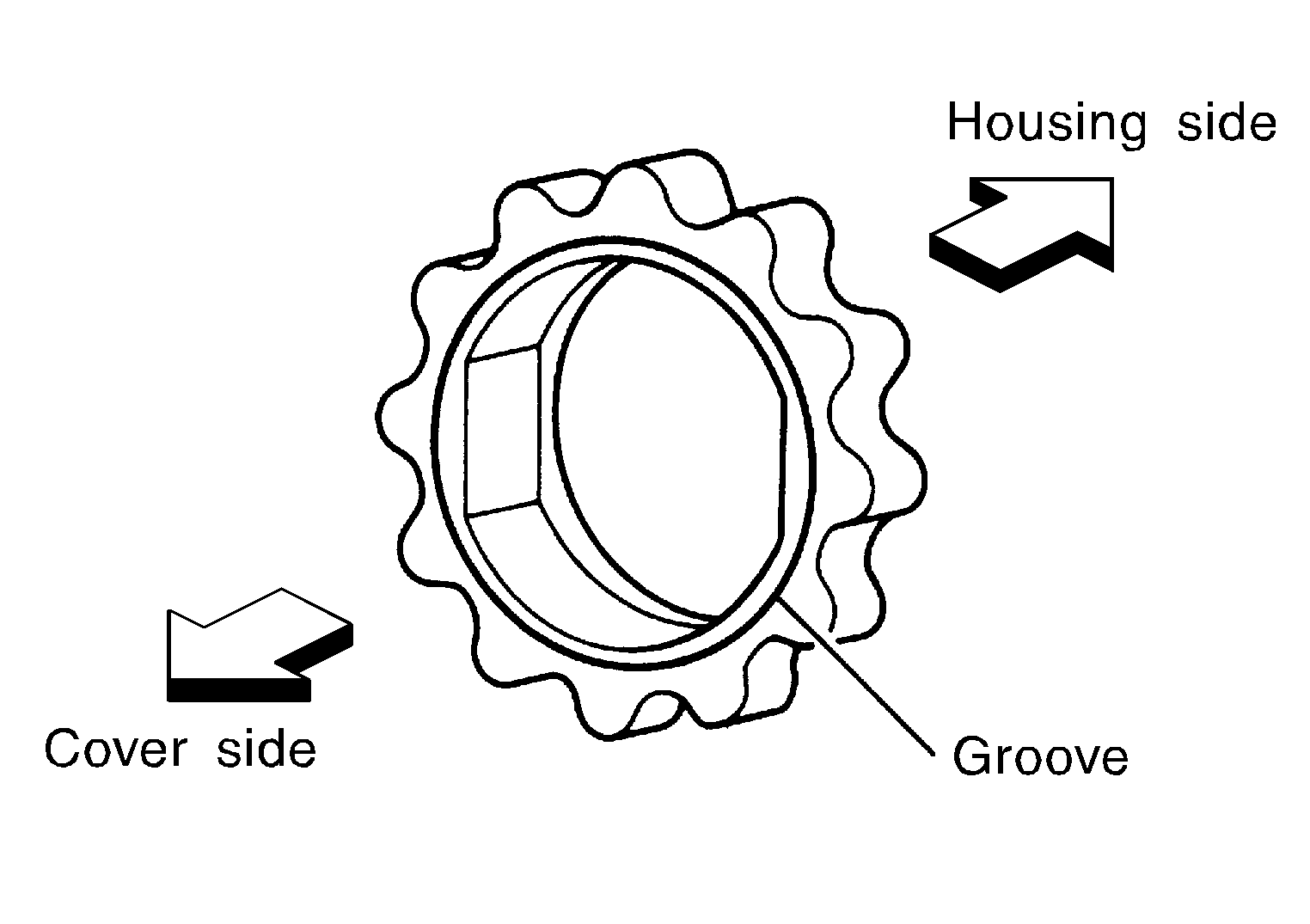

• Assemble the outer rotor in the correct vane orientation to rotation as noted during disassembly and the inner rotor with the groove on the oil pump cover side.
  CAUTION:

  • Do not reuse O-ring.
  • Before assembly apply new engine oil to the parts as specified.
