Removal and Installation: Removal

  1. Disconnect the negative battery terminal. Refer to Battery Disconnect .

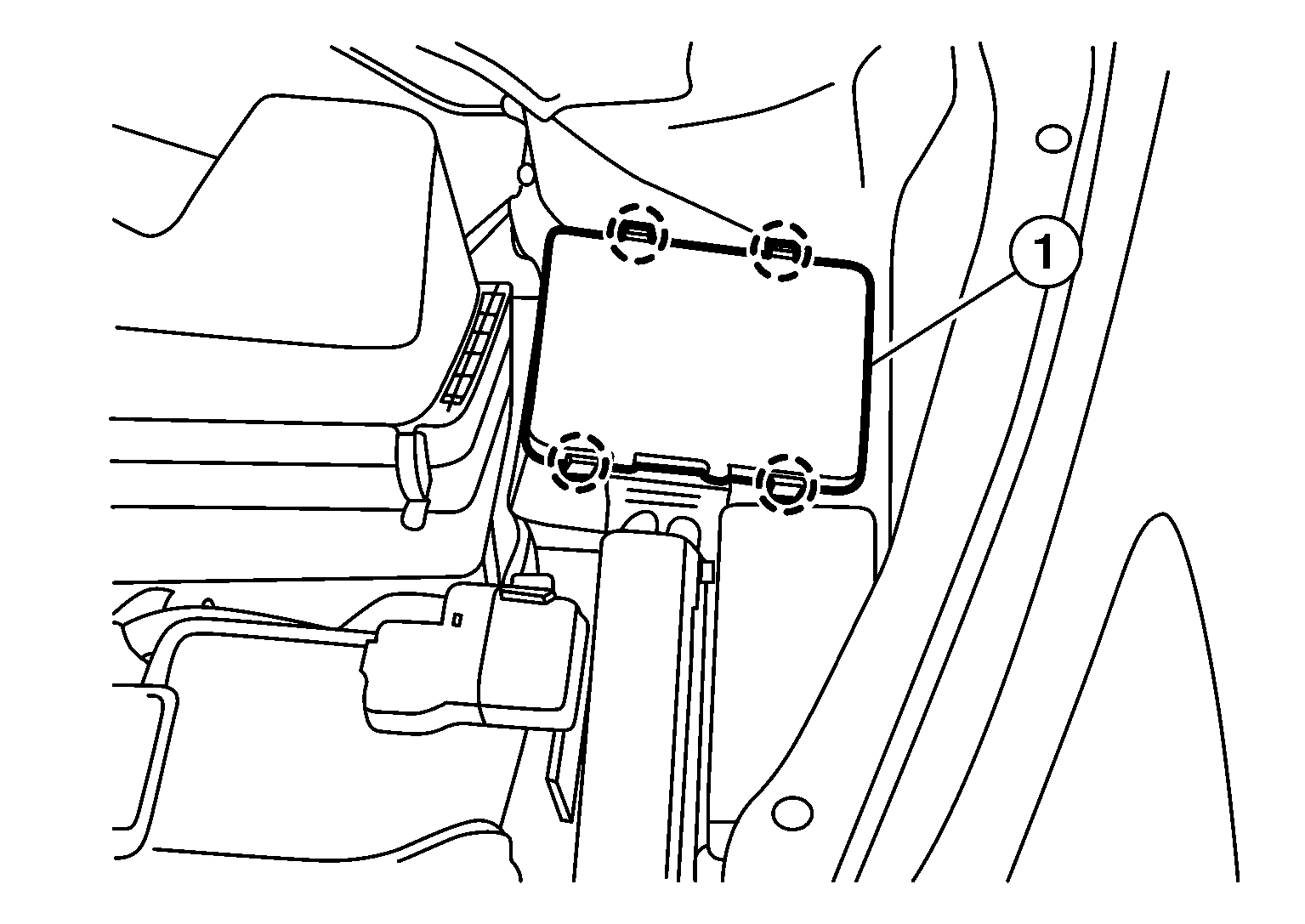

  2. Release the pawls and separate the IPDM E/R (1) from the case.
    GNSDB121890Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL

    :Pawl

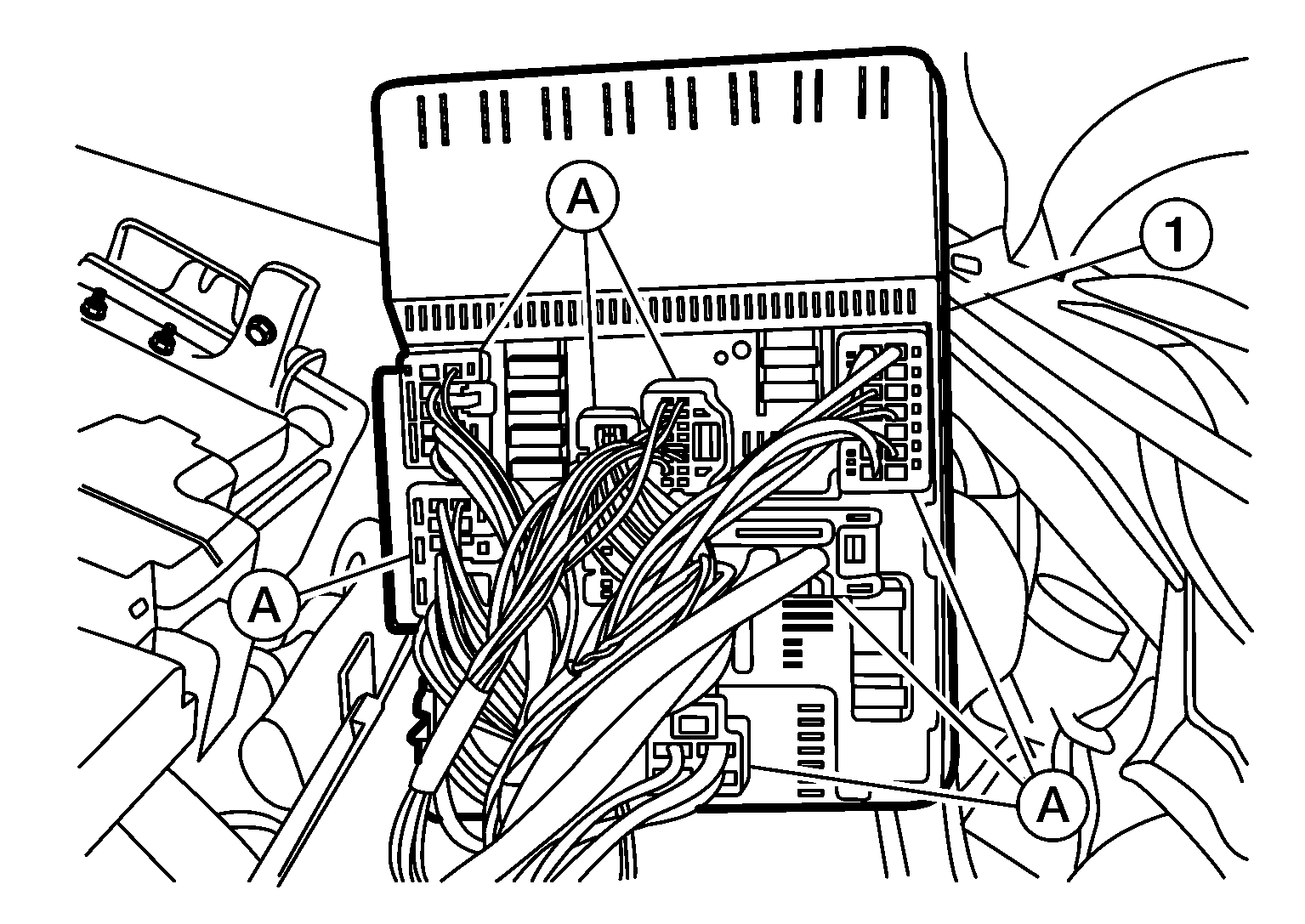

  3. Disconnect all harness connectors (A) from the IPDM E/R (1) and remove.
    GNSDB117730Courtesy of NISSAN NORTH AMERICA, INC.
