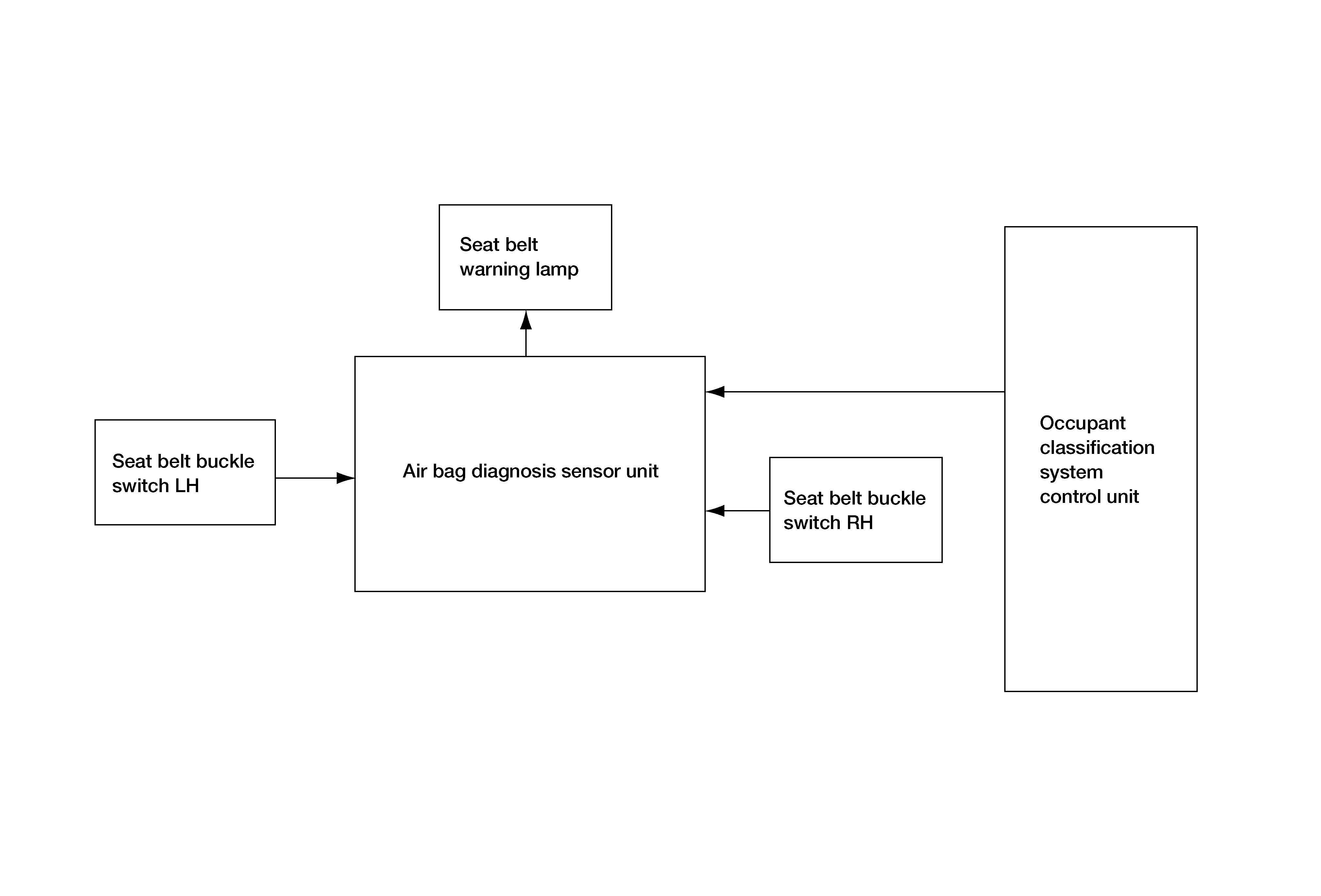

System Diagram

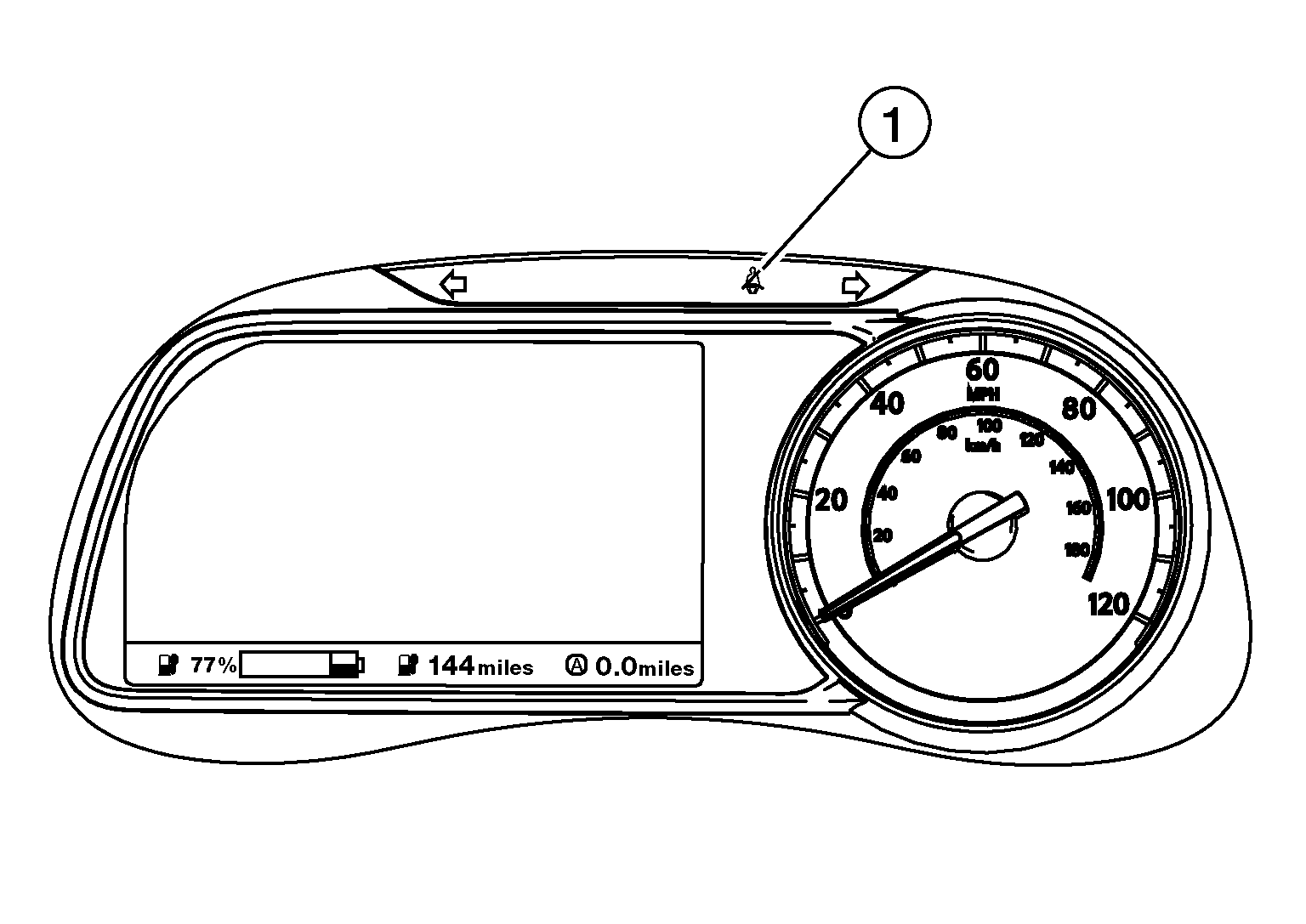

The seat belt warning lamp (1) will remind the driver if the driver or front passenger seat belt should be buckled. The system works in conjunction with the occupant classification system. Refer to System Description .
Seat Belt Warning System Operation
|
Driver seat status (Ignition switch ON) |
Passenger seat status |
Seat belt buckle switch LH status |
Seat belt buckle switch RH status |
Seat belt warning lamp |
|
Seat occupied |
Seat occupied |
Buckled |
Buckled |
Off |
|
Unbuckled |
On |
|||
|
Seat unoccupied |
-- |
Off |
||
|
-- |
Unbuckled |
On |
