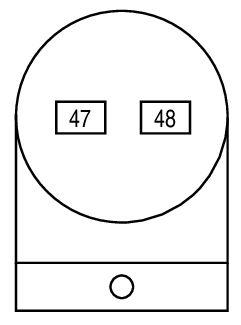

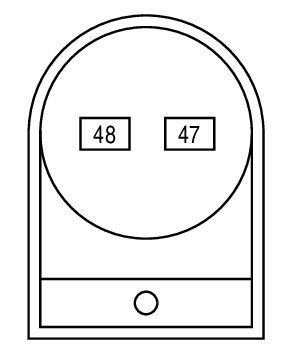

PDM (Power Delivery Module) Connector End View (H9)
Connector Types:
24340 3NF0D
Connector Color:
ORANGE
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 47 |
O |
N-CHG P |
| 48 |
O |
N-CHG N |
