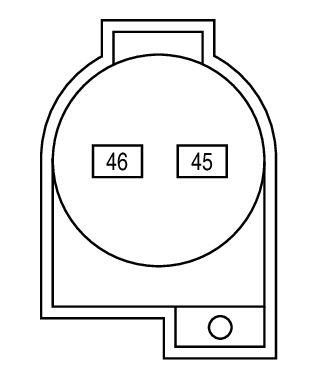

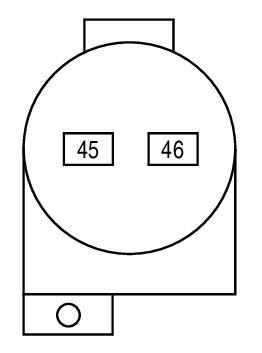

PDM (Power Delivery Module) Connector End View (H8)
Connector Types:
24340 3NF1A
Connector Color:
ORANGE
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 45 |
O |
Q-CHG P |
| 46 |
O |
Q-CHG N |
