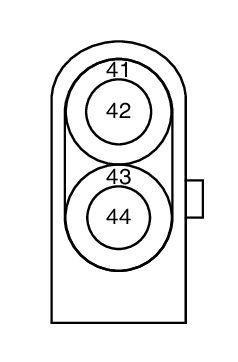

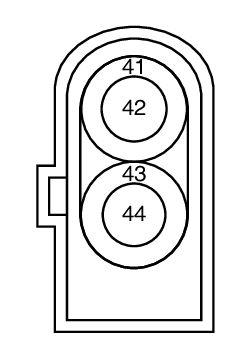

PDM (Power Delivery Module) Connector End View (H6)
Connector Types:
24340 3NF0E
Connector Color:
ORANGE
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 41 |
O |
AC COMP P |
| 42 |
O |
AC COMP N |
| 43 |
SHIELD |
SHIELD |
| 44 |
SHIELD |
SHIELD |
