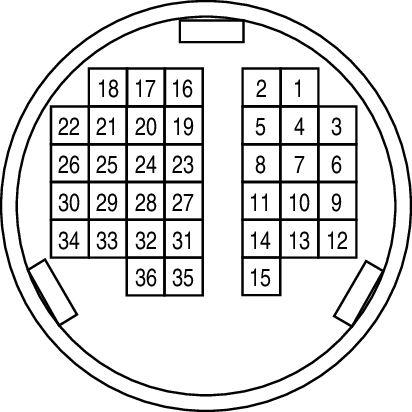

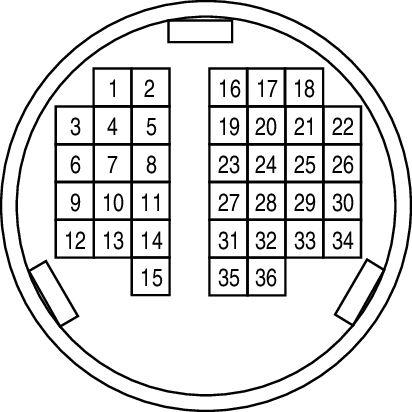

PDM (Power Delivery Module) Connector End View (F23)
Connector Types: RH36FG-GY
Connector Color: GREEN
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | - | - |
| 2 | R | QUICK CHARGE VOLTAGE SENSOR 1 |
| 3 | LG | QUICK CHARGE VOLTAGE SENSOR 2 |
| 4 | B | QUICK CHARGE VOLTAGE SENSOR GND |
| 5 | - | - |
| 6 | L | CAN-L (QUICK CHARGER COMMUNICATION) |
| 7 | W | CAN-H (QUICK CHARGER COMMUNICATION) |
| 8 | V | QUICK CHARGE RELAY (+) |
| 9 | - | - |
| 10 | - | - |
| 11 | G | CAN-L (EV SYSTEM) |
| 12 | P | HIGH VOLTAGE HARNESS CONNECTOR CONNECTION DETECTING CIRCUIT POWER SUPPLY |
| 13 | - | - |
| 14 | - | - |
| 15 | O | HIGH VOLTAGE HARNESS CONNECTOR CONNECTION DETECTING CIRCUIT SIGNALS |
| 16 | V | POWER ON POWER SUPPLY |
| 17 | - | - |
| 18 | R | 12V BATTERY POWER SUPPLY |
| 19 | - | - |
| 20 | - | - |
| 21 | - | - |
| 22 | - | - |
| 23 | - | - |
| 24 | SB | QUICK CHARGE RELAY (-) |
| 25 | - | - |
| 26 | - | - |
| 27 | L | CAN-H (EV SYSTEM) |
| 28 | - | - |
| 29 | W | EVSE CONNECTING SIGNAL |
| 30 | BR | EVSE COMMUNICATION (PWM) |
| 31 | - | - |
| 32 | - | - |
