Occupant Classification System Sensor (Front Inner) Connector End View (B352)

Connector Types:  HS3P

Connector Color:  BLACK

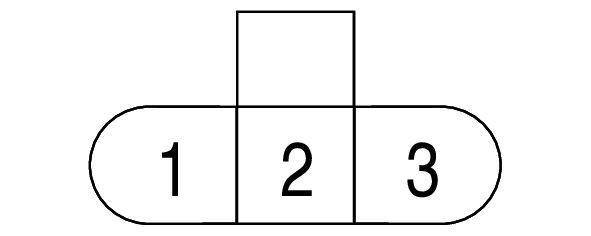

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

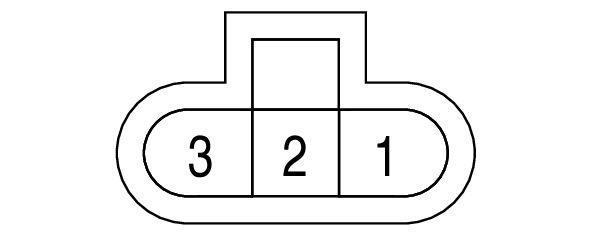

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	R/B	LOAD SENSOR FRONT INNER GND
2	LG	LOAD SENSOR FRONT INNER SIGNAL
3	R	LOAD SENSOR FRONT INNER VCC
