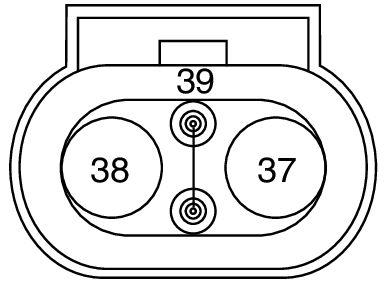

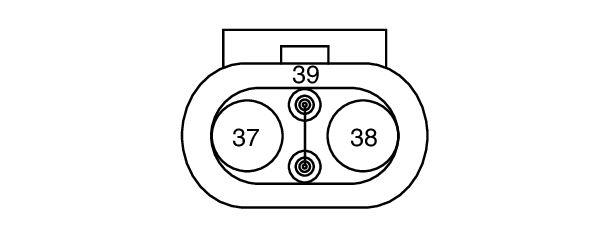

Li-Ion Battery Connector End View (H3)
Connector Types:
24342-3NF1A
Connector Color:
ORANGE
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 37 |
O |
HV BAT (+) |
| 38 |
O |
HV BAT (-) |
| 39 |
SHIELD |
SHIELD |
