Intake Sensor Connector End View (M141)

Connector Types: TK02FBR

Connector Color: BROWN

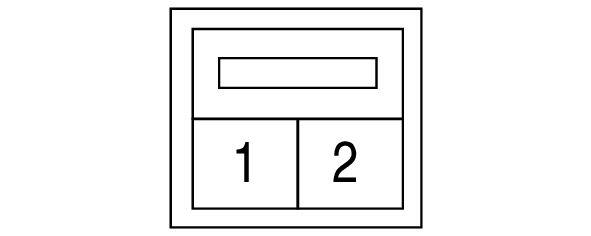

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

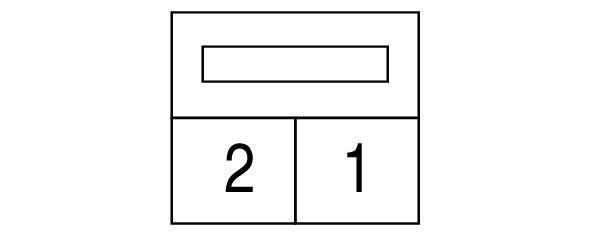

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	R/G	INTAKE SENS
2	Y/G	SENS GND
