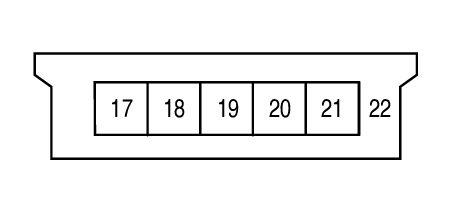

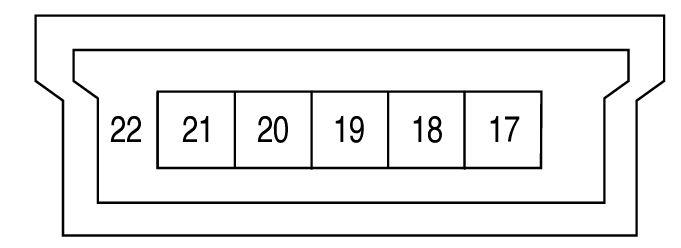

Front Auxiliary Input Jacks Control Unit Connector End View (M166)
Connector Types:
111014-9000
Connector Color:
BLACK
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 17 |
B |
GND |
| 18 |
- |
- |
| 19 |
G |
D+ |
| 20 |
W |
D- |
| 21 |
R |
VBUS |
| 22 |
SHIELD |
SHIELD |
