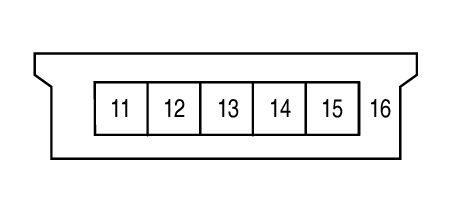

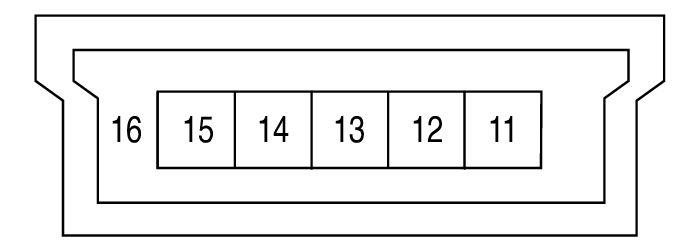

Front Auxiliary Input Jacks Control Unit Connector End View (M165)
Connector Types:
111014-9001
Connector Color:
GRAY
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 11 |
B |
GND |
| 12 |
- |
- |
| 13 |
G |
D+ |
| 14 |
W |
D- |
| 15 |
R |
VBUS |
| 16 |
SHIELD |
SHIELD |
