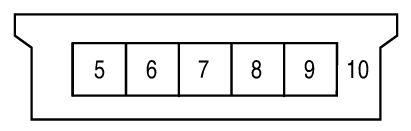

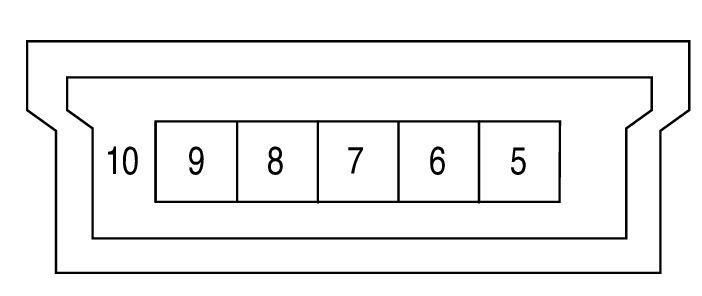

Front Auxiliary Input Jacks Control Unit Connector End View (M164)
Connector Types:
111014-9011
Connector Color:
GREEN
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 5 |
B |
GND |
| 6 |
- |
- |
| 7 |
G |
D+ |
| 8 |
W |
D- |
| 9 |
R |
VBUS |
| 10 |
SHIELD |
SHIELD |
