Front Auxiliary Input Jacks Control Unit Connector End View (M163)

Connector Types:  TH04FW-NH

Connector Color:  WHITE

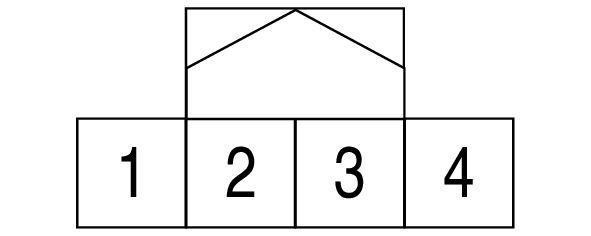

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

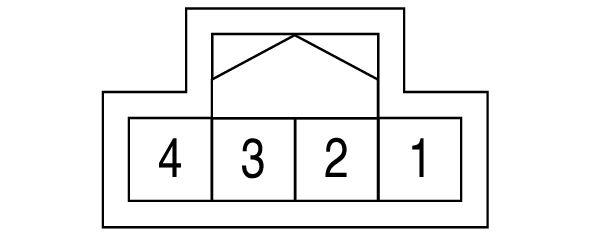

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
1	SB	B+
2	-	-
3	-	-
4	B	GND
