EPS Control Unit Connector End View (M38)

Connector Types: L02FB-MC

Connector Color: BLACK

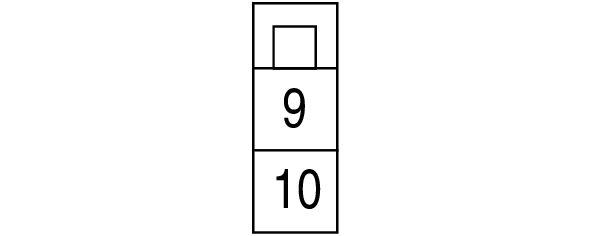

Fig 1: Terminal-side

Courtesy of NISSAN NORTH AMERICA

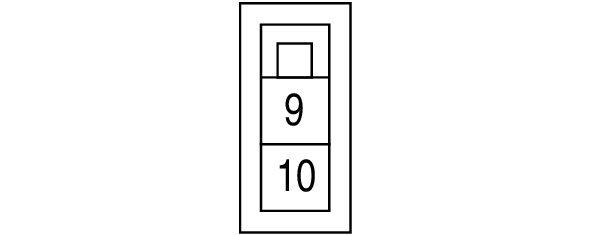

Fig 2: Harness-side

Courtesy of NISSAN NORTH AMERICA

Terminal No.	Color of Wire	Signal Name (Specification)
9	R	BATTERY+
10	B	GND
