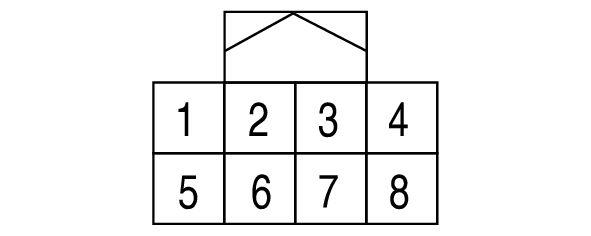

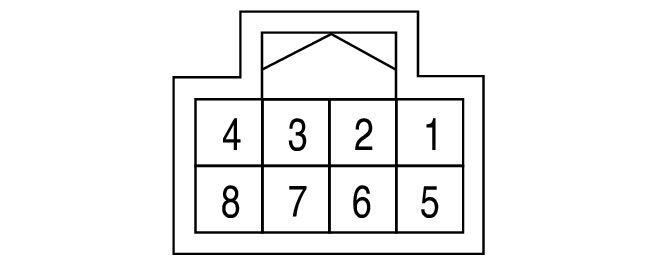

EPS Control Unit Connector End View (M37)
Connector Types:
TH08FW-NH
Connector Color:
WHITE
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
G |
CAN-L |
| 2 |
GR |
CAN-H |
| 3 |
- |
- |
| 4 |
LA/W |
V IGN |
| 5 |
- |
- |
| 6 |
- |
- |
| 7 |
- |
- |
| 8 |
- |
- |
