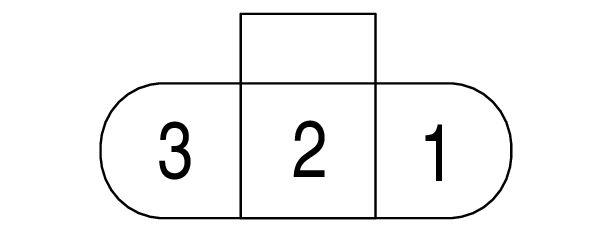

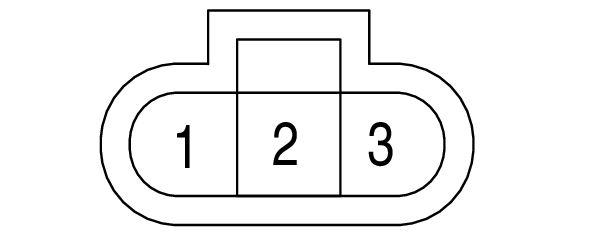

Cooling Fan Control Module Connector End View (E19)
Connector Types:
SJZ01FGY-SNZ2
Connector Color:
GRAY
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
B |
GND |
| 2 |
G |
PWM SIG |
| 3 |
R |
PWM POWER |
