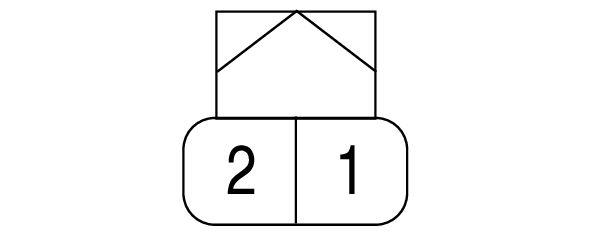

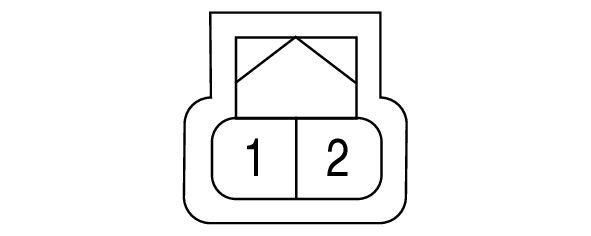

Compressor Suction Refrigerant Temperature Sensor Connector End View (E89)
Connector Types:
RH02FBR
Connector Color:
BROWN
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 1 |
Y |
TS SENS |
| 2 |
B |
SENS GND |
