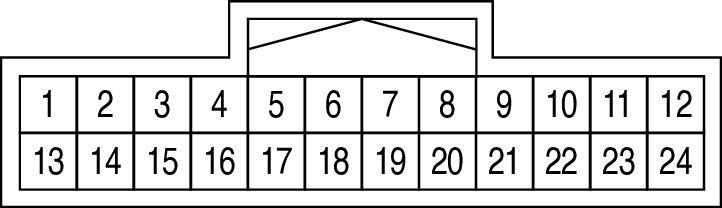

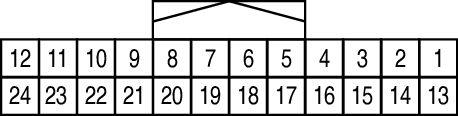

Chassis Control Module Connector End View (B64)
Connector Types: TH24FW-NH
Connector Color: WHITE
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | - | - |
| 2 | - | - |
| 3 | G | CAN-L |
| 4 | GR | CAN-H |
| 5 | - | - |
| 6 | - | - |
| 7 | - | - |
| 8 | Y | IC-CAN-L |
| 9 | LA/SB | STOP LAMP OFF RELAY 2 |
| 10 | Y | POWER SWITCH ON |
| 11 | GR | IC-CAN-H |
| 12 | B | GROUND |
| 13 | - | - |
| 14 | - | - |
| 15 | - | - |
| 16 | - | - |
| 17 | - | - |
| 18 | - | - |
| 19 | - | - |
| 20 | - | - |
