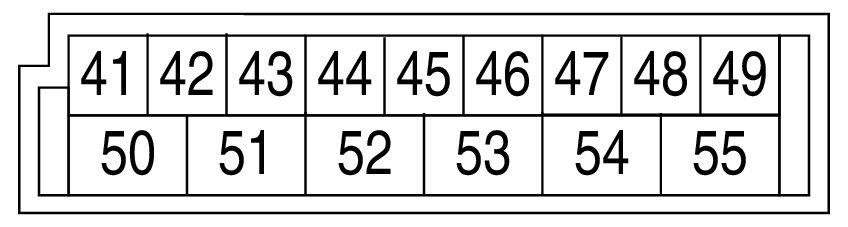

BCM (Body Control Module) Connector End View (M29)
Connector Types: FEA09FB-FHA6-SA
Connector Color: BLACK
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 41 | - | - |
| 42 | - | - |
| 43 | Y | DOOR SW (BACK) |
| 44 | LG | REAR WIPER AUTO STOP SW |
| 45 | BR | DOOR SW (AS) |
| 46 | R | DOOR SW (RR) |
| 47 | SB | DOOR SW (DR) |
| 48 | V | DOOR SW (RL) |
| 49 | BG | LUGGAGE LAMP OUTPUT |
| 50 | - | - |
| 51 | R | REQUEST SW (BACK DOOR) |
| 52 | - | - |
| 53 | Y | BACK DOOR OPEN OUTPUT |
| 54 | P | REAR WIPER MOTOR OUTPUT |
| 55 | GR | DOOR UNLOCK OUTPUT (RR, RL) |
