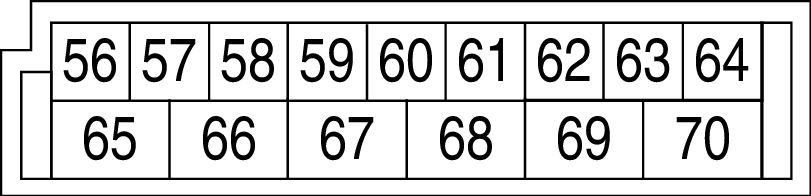

BCM (Body Control Module) Connector End View (M25)
Connector Types: FEA09FW-FHA6-SA
Connector Color: WHITE
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 56 | GR | BATTERY SAVER OUTPUT |
| 57 | P | BATTERY (FUSE) |
| 58 | W | SHOCK DETECT SIGNAL |
| 59 | LG | DOOR UNLOCK OUTPUT (AS) |
| 60 | V | FLASHER OUTPUT (LEFT) |
| 61 | R | FLASHER OUTPUT (RIGHT) |
| 62 | - | - |
| 63 | BR | ROOM LAMP CONTROL |
| 64 | - | - |
| 65 | V | DOOR LOCK OUTPUT |
| 66 | BR | DOOR UNLOCK COMMON (DR) |
| 67 | B | GND |
| 68 | L | POWER WINDOW POWER SUPPLY (RAP) |
| 69 | R | POWER WINDOW POWER SUPPLY (BATTERY) |
| 70 | Y | BATTERY (F/L) |
