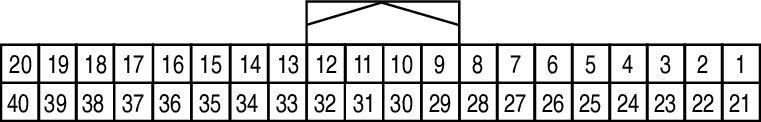

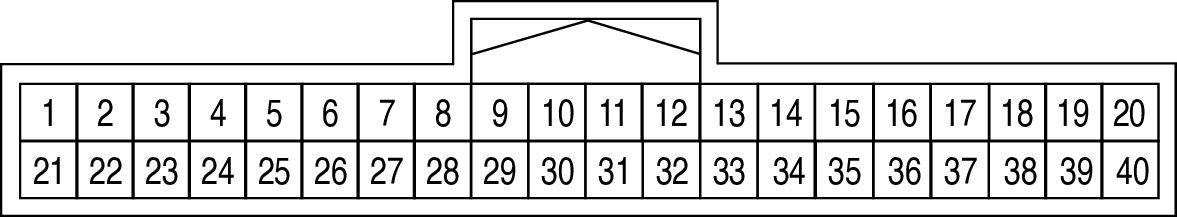

BCM (Body Control Module) Connector End View (M24)
Connector Types: TH40FB-NH
Connector Color: BLACK
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | - | - |
| 2 | LA/L | COMBINATION SW INPUT 5 |
| 3 | LA/GR | COMBINATION SW INPUT 4 |
| 4 | LA/BR | COMBINATION SW INPUT 3 |
| 5 | LA/G | COMBINATION SW INPUT 2 |
| 6 | LA/V | COMBINATION SW INPUT 1 |
| 7 | LA/GR | KEY CYLINDER UNLOCK SW |
| 8 | LA/R | KEY CYLINDER LOCK SW |
| 9 | LA/BR | BRAKE SW1 |
| 10 | - | - |
| 11 | - | - |
| 12 | Y | CENTRAL DOOR LOCK SW |
| 13 | BR | CENTRAL DOOR UNLOCK SW |
| 14 | G | AUTO LIGHT SENSOR INPUT |
| 15 | LA/W | REAR DEFOGGER SW |
| 16 | - | - |
| 17 | Y | AUTO LIGHT SENSOR POWER SUPPLY OUTPUT |
| 18 | LA/L | KEYLESS TUNER, AUTO LIGHT SENSOR GND |
| 19 | LA/BR | KEYLESS TUNER POWER SUPPLY |
| 20 | LA/SB | KEYLESS TUNER SIGNAL |
| 21 | LA/P | IMMOBILIZER ONE WAY COMMUNICATION (CLOCK) |
| 22 | LA/W | KEYLESS TUNER RSSI |
| 23 | LA/G | SECURITY INDICATOR OUTPUT |
| 24 | SB | AUDIO/DONGLE LINK (SERIAL) |
| 25 | LA/LG | IMMOBILIZER TWO WAY COMMUNICATION |
| 26 | - | - |
| 27 | - | - |
| 28 | - | - |
| 29 | G | HAZARD SW |
| 30 | LA/V | BACK DOOR OPENER SW |
| 31 | LA/W | DOOR LOCK STATUS SW (DR) |
| 32 | LA/LG | COMBINATION SW OUTPUT 5 |
| 33 | LA/Y | COMBINATION SW OUTPUT 4 |
| 34 | LA/W | COMBINATION SW OUTPUT 3 |
| 35 | LA/BG | COMBINATION SW OUTPUT 2 |
| 36 | LA/P | COMBINATION SW OUTPUT 1 |
| 37 | LA/Y | SHIFT P POSITION, PARKING POSITION SW |
| 38 | - | - |
| 39 | L | CAN-H |
| 40 | P | CAN-L |
