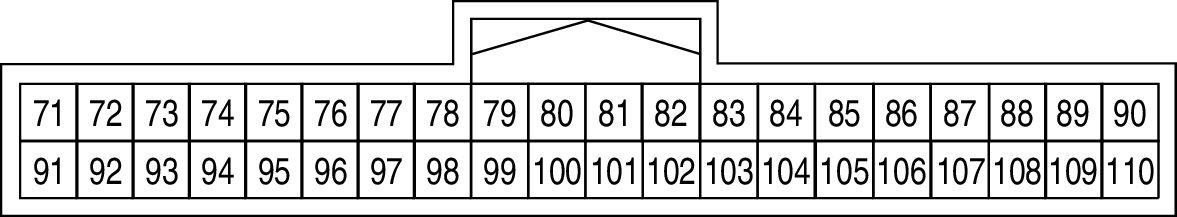

BCM (Body Control Module) Connector End View (M23)
Connector Types: TH40FW-NH
Connector Color: WHITE
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 71 | - | - |
| 72 | - | - |
| 73 | - | - |
| 74 | - | - |
| 75 | LA/LG | REQUEST SW (DR) |
| 76 | LA/SB | ENGINE START SW |
| 77 | - | - |
| 78 | LA/P | DOOR ANTENNA (DR) + |
| 79 | LA/V | DOOR ANTENNA (DR) - |
| 80 | LA/R | DOOR ANTENNA (AS) + |
| 81 | LA/G | DOOR ANTENNA (AS) - |
| 82 | LA/W | BACK DOOR ANTENNA + |
| 83 | LA/B | BACK DOOR ANTENNA - |
| 84 | BR | ROOM ANTENNA 1 + |
| 85 | Y | ROOM ANTENNA 1 - |
| 86 | LA/G | ROOM ANTENNA 2 + |
| 87 | LA/R | ROOM ANTENNA 2 - |
| 88 | LA/BR | ROOM ANTENNA 3 + |
| 89 | LA/L | ROOM ANTENNA 3 - |
| 90 | LA/Y | HIGH SIDE ENGINE START SW ILLUMINATION LED |
| 91 | LA/V | POWER POSITION LED (LOCK POSITION LED) |
| 92 | B | LOW SIDE ENGINE START SW ILLUMINATION LED OUTPUT |
| 93 | LA/G | SMART KEYLESS BUZZER OUTPUT |
| 94 | - | - |
| 95 | - | - |
| 96 | BR | ACC RELAY OUTPUT |
| 97 | LA/GR | STARTER RELAY OUTPUT |
| 98 | LA/L | IGN RELAY OUTPUT1 (USM) |
| 99 | GR | IGN RELAY OUTPUT2 (ELEC) |
| 100 | LA/Y | REQUEST SWITCH (AS) |
| 101 | - | - |
| 102 | LA/BG | SHIFT N, P |
| 103 | - | - |
| 104 | - | - |
| 105 | LA/GR | BRAKE SW2 |
| 106 | - | - |
| 107 | - | - |
| 108 | - | - |
| 109 | - | - |
| 110 | - | - |
