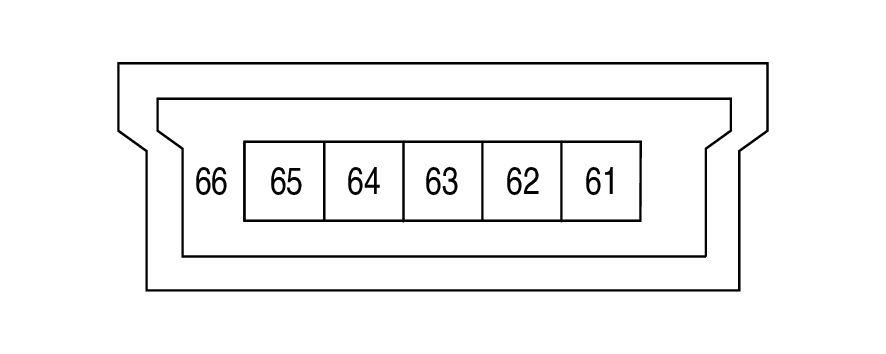

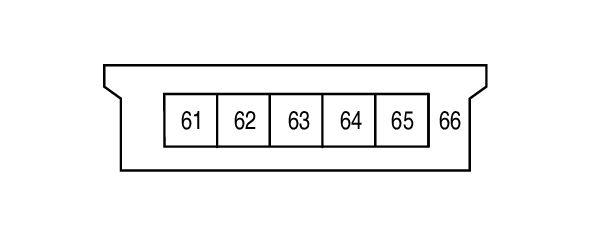

Av Control Unit Connector End View (M104)
Connector Types:
USCAR30-MA-M
Connector Color:
BLACK
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 61 |
B |
GND |
| 62 |
- |
- |
| 63 |
G |
D+ |
| 64 |
W |
D- |
| 65 |
R |
VBUS |
| 66 |
SHIELD |
SHIELD |
