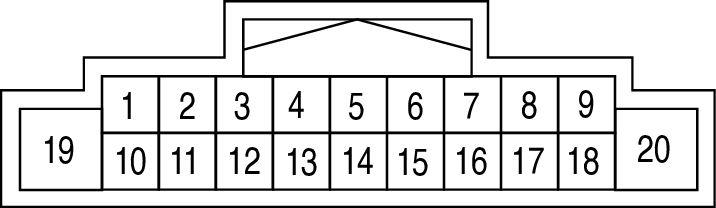

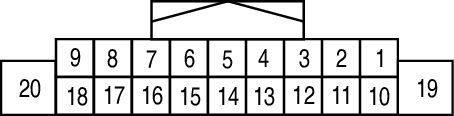

Av Control Unit (Without Navigation System) Connector End View (M68)
Connector Types: NH18FW-CS2
Connector Color: WHITE
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 1 | - | - |
| 2 | L | FR SP LH (+) |
| 3 | P | FR SP LH (-) |
| 4 | V | RR SP LH (+) |
| 5 | SB | RR SP LH (-) |
| 6 | - | - |
| 7 | G | ACC |
| 8 | R | REVERSE |
| 9 | B | ILL CONT |
| 10 | - | - |
| 11 | G | FR SP RH (+) |
| 12 | R | FR SP RH (-) |
| 13 | BR | RR SP RH (+) |
| 14 | P | RR SP RH (-) |
| 15 | - | - |
| 16 | - | - |
| 17 | V | IGN |
| 18 | - | - |
| 19 | BR | BAT |
| 20 | B | GND |
