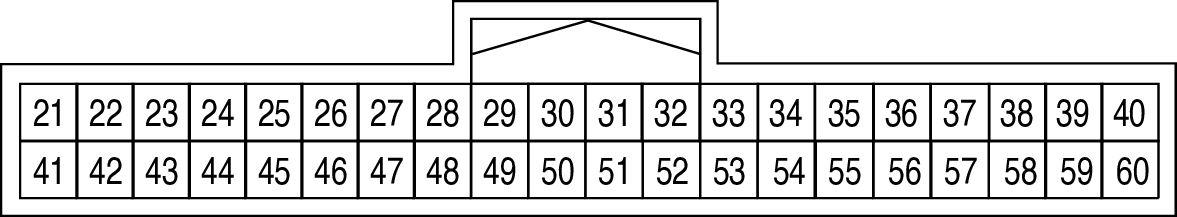

Av Control Unit (With Navigation System) Connector End View (M98)
Connector Types: TH40FW-NH
Connector Color: WHITE
| Terminal No. | Color of Wire | Signal Name (Specification) |
|---|---|---|
| 21 | SB | V CAN-H |
| 22 | SB | M CAN-H |
| 23 | SB | M CAN-H |
| 24 | - | - |
| 25 | - | - |
| 26 | - | - |
| 27 | - | - |
| 28 | G | CAMERA V+ |
| 29 | L | CAMERA GND |
| 30 | - | - |
| 31 | SHIELD | TCU TEL SHIELD |
| 32 | G | TCU TEL IN + |
| 33 | - | - |
| 34 | - | - |
| 35 | - | - |
| 36 | - | - |
| 37 | - | - |
| 38 | - | - |
| 39 | - | - |
| 40 | L | HF/VR MIC 1 INPUT |
| 41 | V | V CAN-L |
| 42 | LG | M CAN-L |
| 43 | LG | M CAN-L |
| 44 | - | - |
| 45 | - | - |
| 46 | - | - |
| 47 | - | - |
| 48 | SHIELD | CAMERA SHIELD |
| 49 | W | CAMERA COMP + (WITH INTELLIGENT AROUND VIEW MONITOR SYSTEM) |
| 49 | Y | CAMERA COMP + (WITHOUT INTELLIGENT AROUND VIEW MONITOR SYSTEM) |
| 50 | - | - |
| 51 | LA/V | HF/VR MODE CHANGE |
| 52 | R | TCU TEL IN - |
| 53 | - | - |
| 54 | - | - |
| 55 | - | - |
| 56 | - | - |
| 57 | - | - |
| 58 | W | ILL |
| 59 | SHIELD | MIC 2 GND |
| 60 | - | - |
