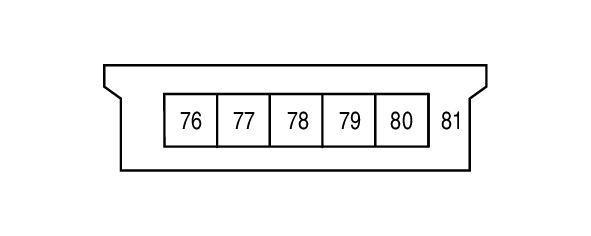

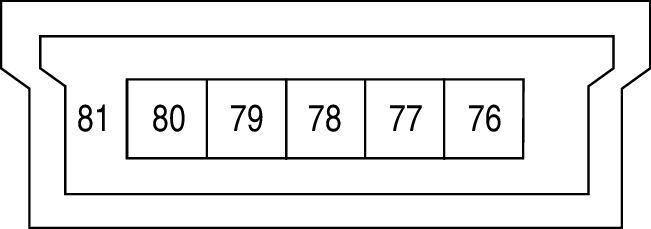

Av Control Unit (With Navigation System) Connector End View (M116)
Connector Types:
USCAR30-MA-M
Connector Color:
BROWN
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 76 |
B |
GND |
| 77 |
- |
- |
| 78 |
G |
D+ |
| 79 |
W |
D- |
| 80 |
R |
VBUS |
| 81 |
SHIELD |
SHIELD |
