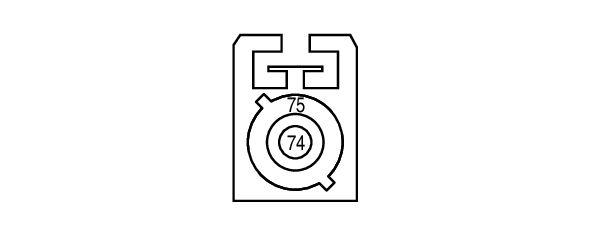

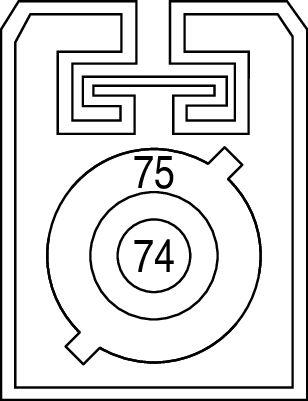

Av Control Unit (With Navigation System) Connector End View (M115)
Connector Types:
FAKRA CODING C
Connector Color:
BLUE
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 74 |
B |
GPS ANTENNA SIGNAL |
| 75 |
SHIELD |
SHIELD |
