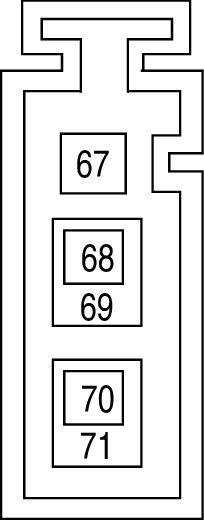

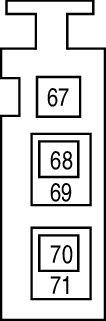

Av Control Unit (With Navigation System) Connector End View (M113)
Connector Types:
GT13SH-2/1S-HU
Connector Color:
GRAY
Courtesy of NISSAN NORTH AMERICA
Courtesy of NISSAN NORTH AMERICA
| Terminal No. |
Color of Wire |
Signal Name (Specification) |
| 67 |
B |
ANTENNA AMP. ON SIGNAL |
| 68 |
B |
RADIO ANTENNA SIGNAL |
| 69 |
SHIELD |
SHIELD |
| 70 |
- |
- |
| 71 |
- |
- |
