Exploded View

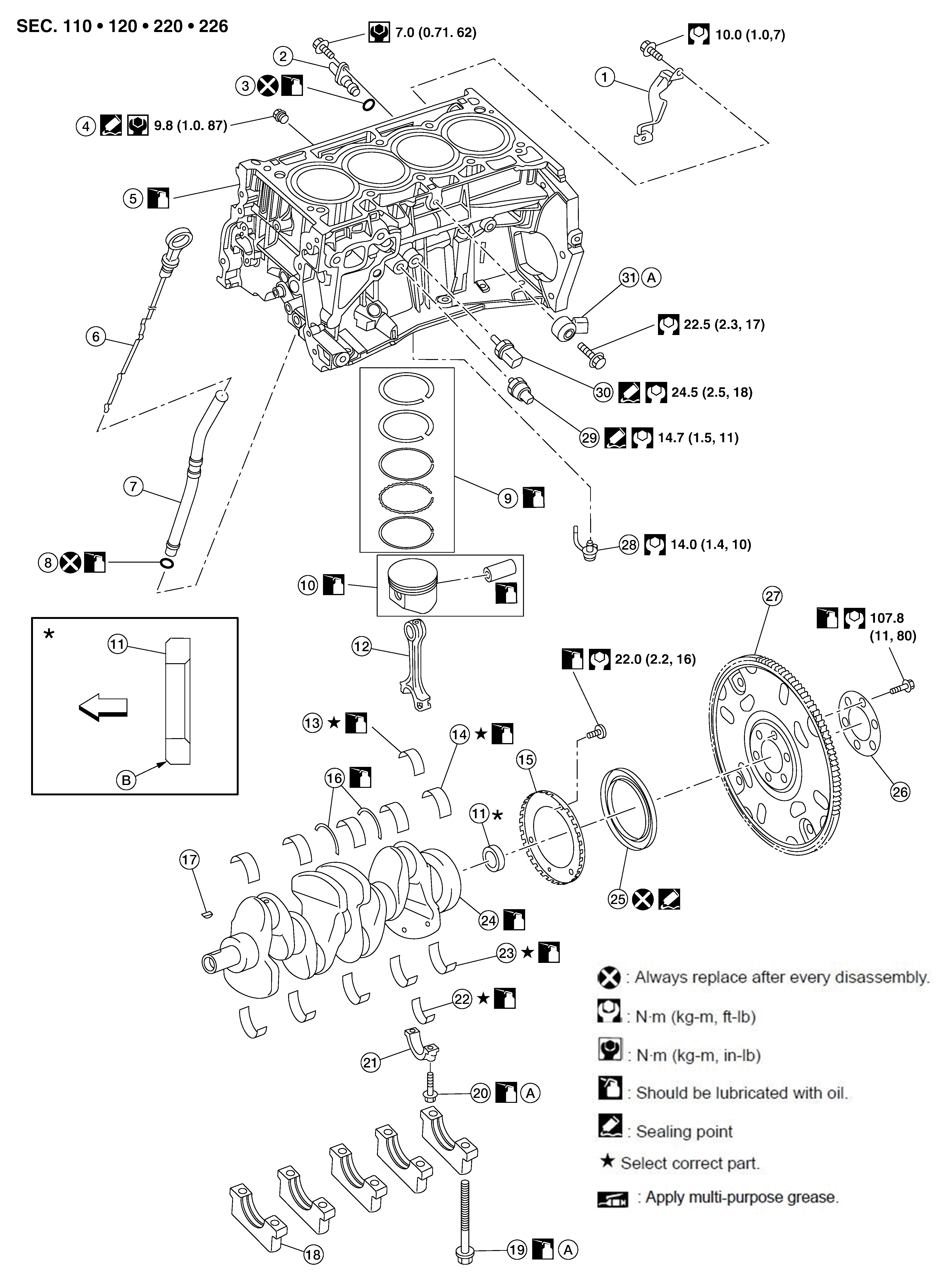

Fig 1: Cylinder Block Components With Torque Specification

GNSAWBIA0249Z-249

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Crankshaft position sensor cover	2.	Crankshaft position sensor (POS)	3.	O-ring
4.	Drain plug	5.	Cylinder block	6.	Oil level gauge
7.	Oil level gauge guide	8.	O-ring	9.	Piston rings
10.	Piston	11.	Pilot converter	12.	Connecting rod
13.	Connecting rod bearing (upper)	14.	Main bearing (upper)	15.	Signal plate
16.	Thrust bearing	17.	Crankshaft key	18.	Main bearing cap
19.	Main bearing cap bolt	20.	Connecting rod bolt	21.	Connecting rod cap
22.	Connecting rod bearing (lower)	23.	Main bearing (lower)	24.	Crankshaft
25.	Rear oil seal	26.	Reinforce plate	27.	Drive plate
28.	Oil jet	29.	Engine oil pressure sensor	30.	Engine oil temperature sensor
31.	Knock sensor	A.	Refer to INSTALLATION	B.	Chamfered
	Crankshaft side

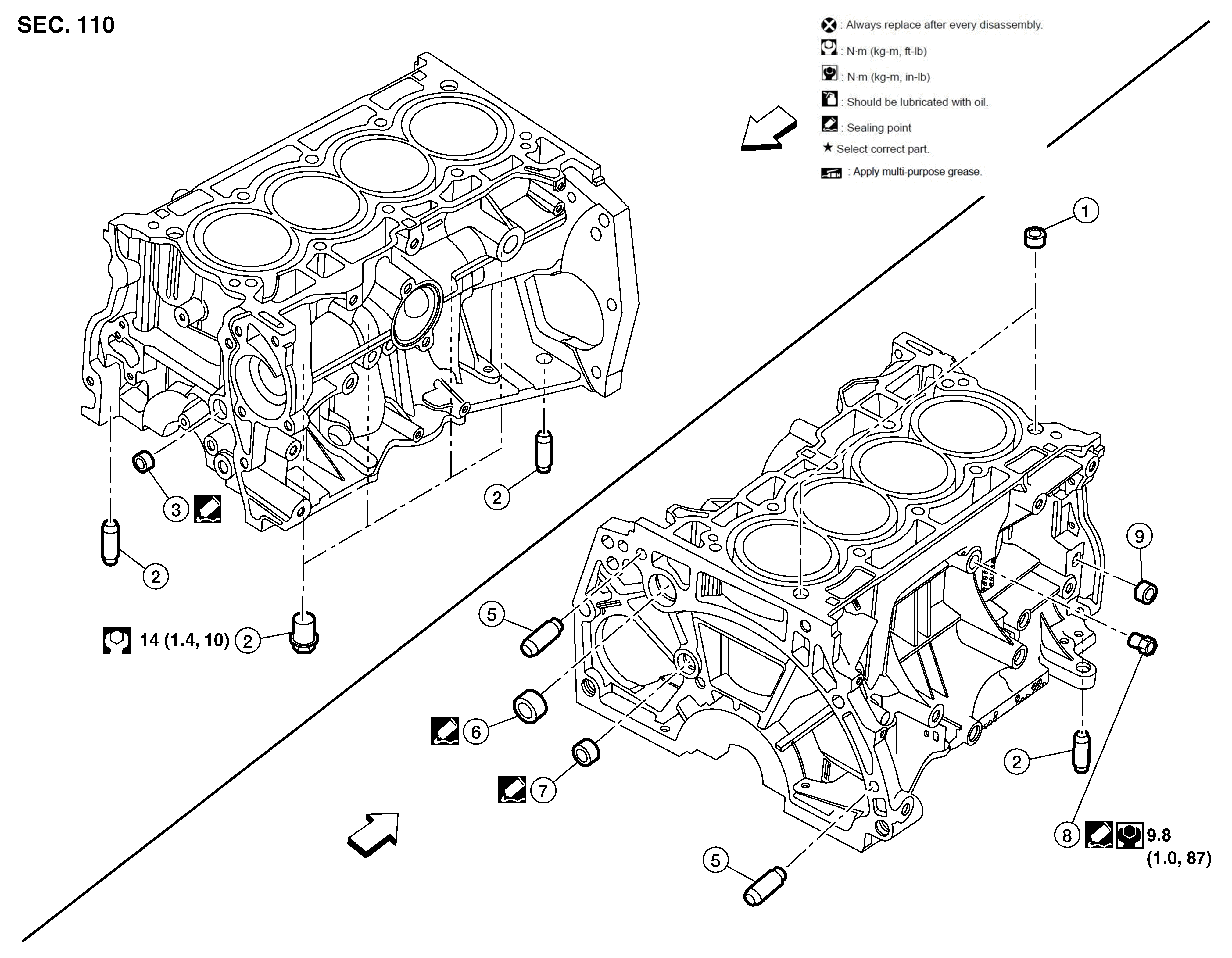

Fig 2: Cylinder Block Components With Torque Specification

GNSAWBIA3129Z-129

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Spring pin	2.	Dowel pin	3.	Welch plug
4.	Threaded plug	5.	Dowel pin	6.	Welch plug
7.	Welch plug	8.	Drain plug	9.	Welch plug
	Engine front
