Kicks S
>>
Repair and Diagnosis
>>
Transmission
>>
Automatic Trans
>>
Automatic Transmission
>>
System Description
>>
System
>>
CVT Control System
>>
System Diagram

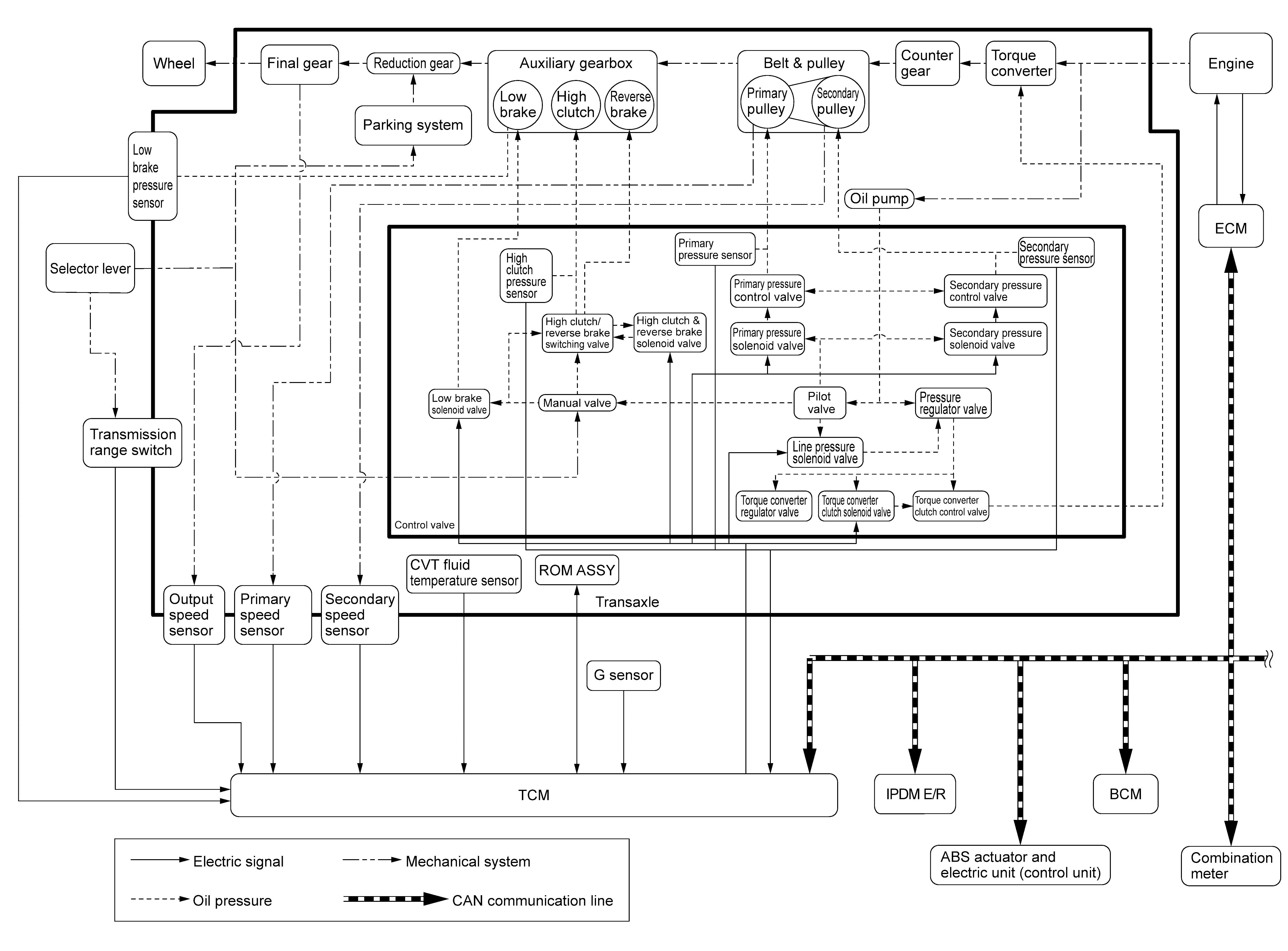

System Diagram
Courtesy of NISSAN NORTH AMERICA, INC.
NOTE:
ABS actuator and electric unit (control unit) is applied to without VDC (with ABS) or with VDC.
Courtesy of NISSAN NORTH AMERICA, INC.
