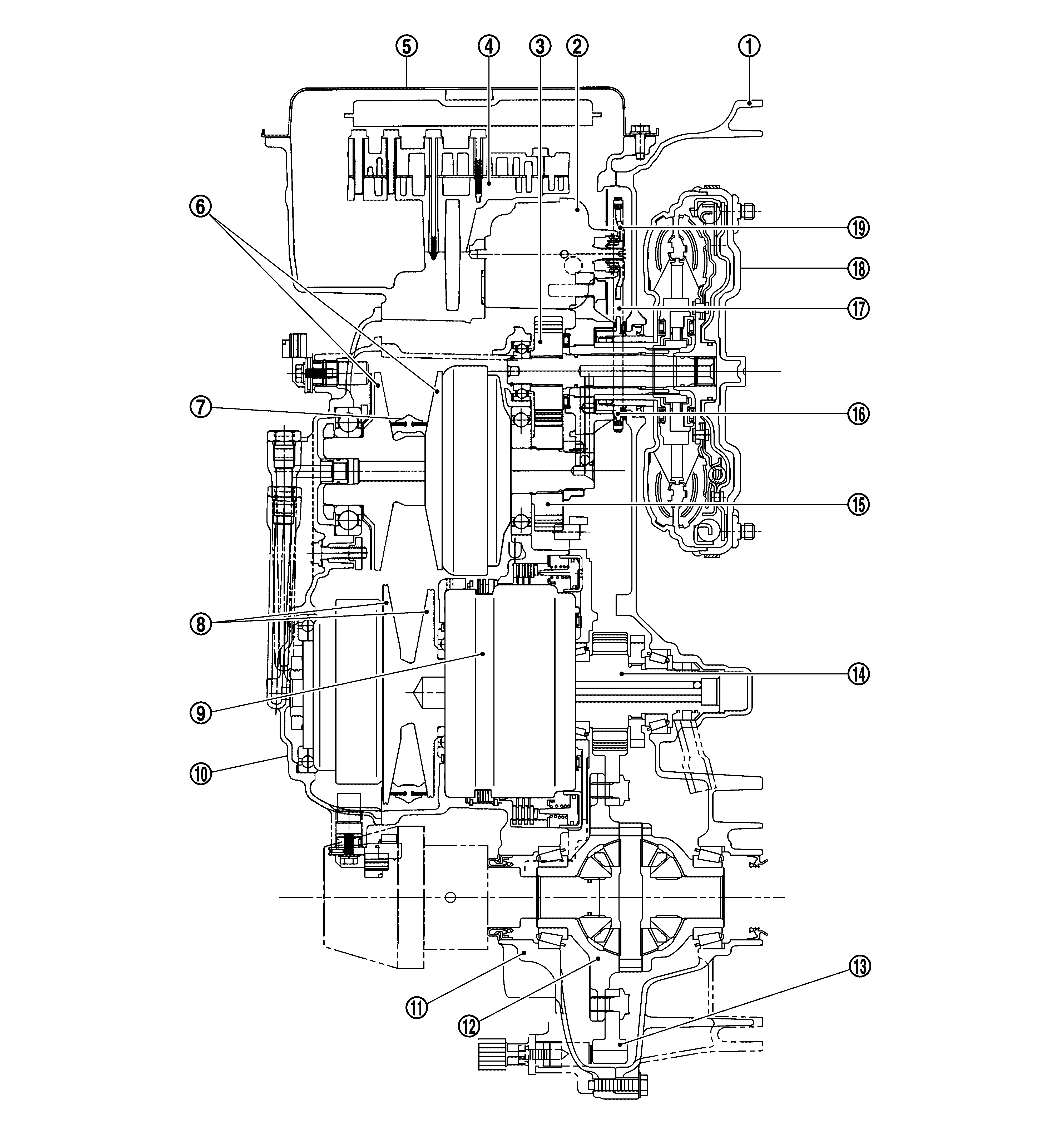

Cross-Sectional View

GNSJSDIA7955Z-955Courtesy of NISSAN NORTH AMERICA, INC.

SYMBOL

Converter housing

SYMBOL

Oil pump

SYMBOL

Counter drive gear

SYMBOL

Control valve

SYMBOL

Oil pan

SYMBOL

Primary pulley

SYMBOL

Steel belt

SYMBOL

Secondary pulley

SYMBOL

Planetary gear (auxiliary gearbox)

SYMBOL

Side cover

SYMBOL

Transaxle case

SYMBOL

Differential case

SYMBOL

Final gear

SYMBOL

Reduction gear

SYMBOL

Counter driven gear

SYMBOL

Drive sprocket

SYMBOL

Oil pump chain

SYMBOL

Torque converter

SYMBOL

Driven sprocket
