Exploded View

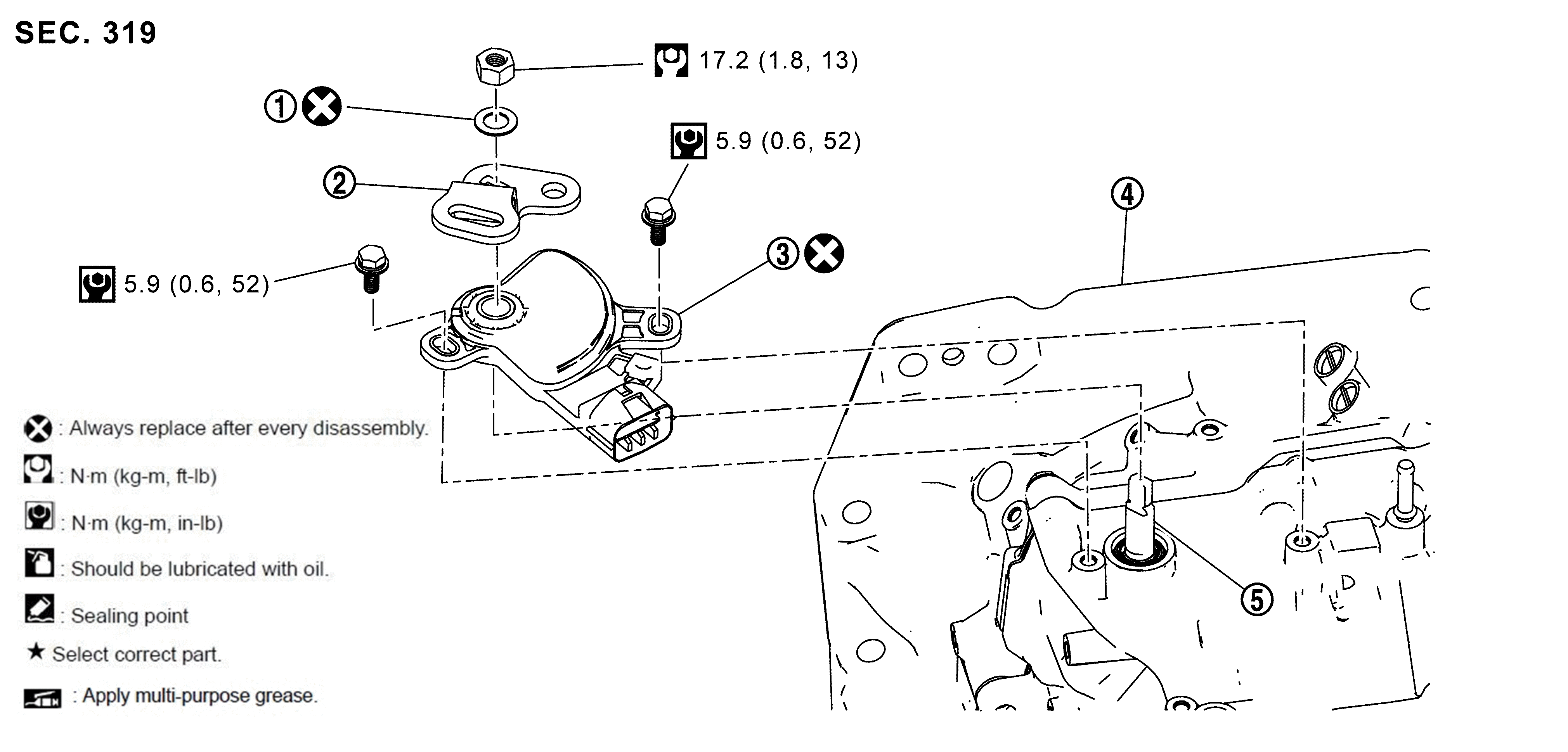

Fig 1: Transmission Range Switch Components With Torque Specification
GNSJSDIA6561GB-561Courtesy of NISSAN NORTH AMERICA, INC.

1.

Lock washer

2.

Manual lever

3.

Transmission range switch

4.

Transaxle assembly

5.

Manual shaft
