Automatic Transmission
>>
Removal And Installation
>>
Secondary Speed Sensor
>>
Exploded View
Exploded View

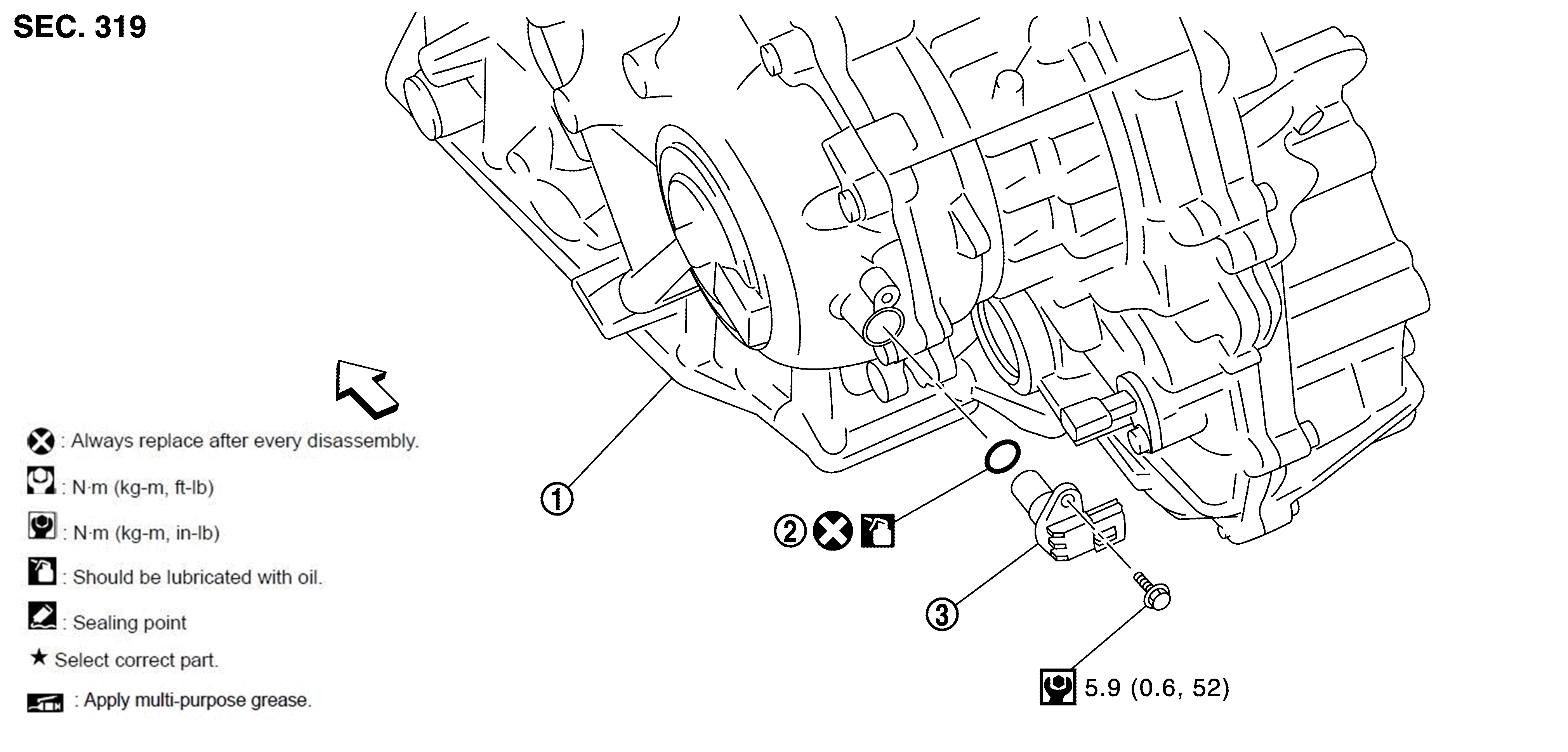

Fig 1: Secondary Speed Sensor Components With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Transaxle assembly
2.
O-ring
3.
Secondary speed sensor
Front
Courtesy of NISSAN NORTH AMERICA, INC.
