Automatic Transmission
>>
Removal And Installation
>>
Pressure Sensor
>>
Exploded View
Exploded View

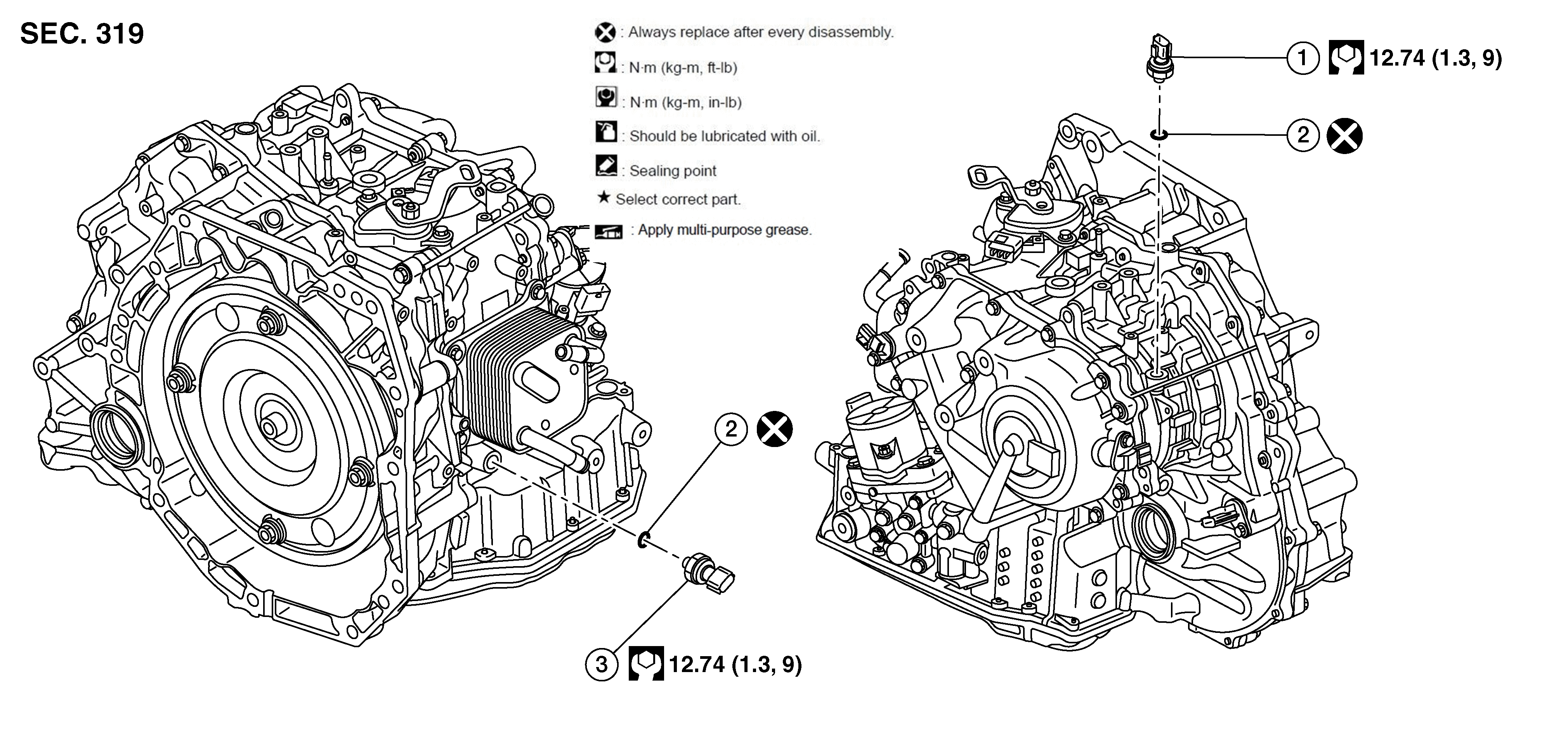

Fig 1: Pressure Sensor Components With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Low brake pressure sensor
2.
O-ring
3.
Reverse brake pressure sensor
