Automatic Transmission
>>
Removal And Installation
>>
Output Speed Sensor
>>
Exploded View
Exploded View

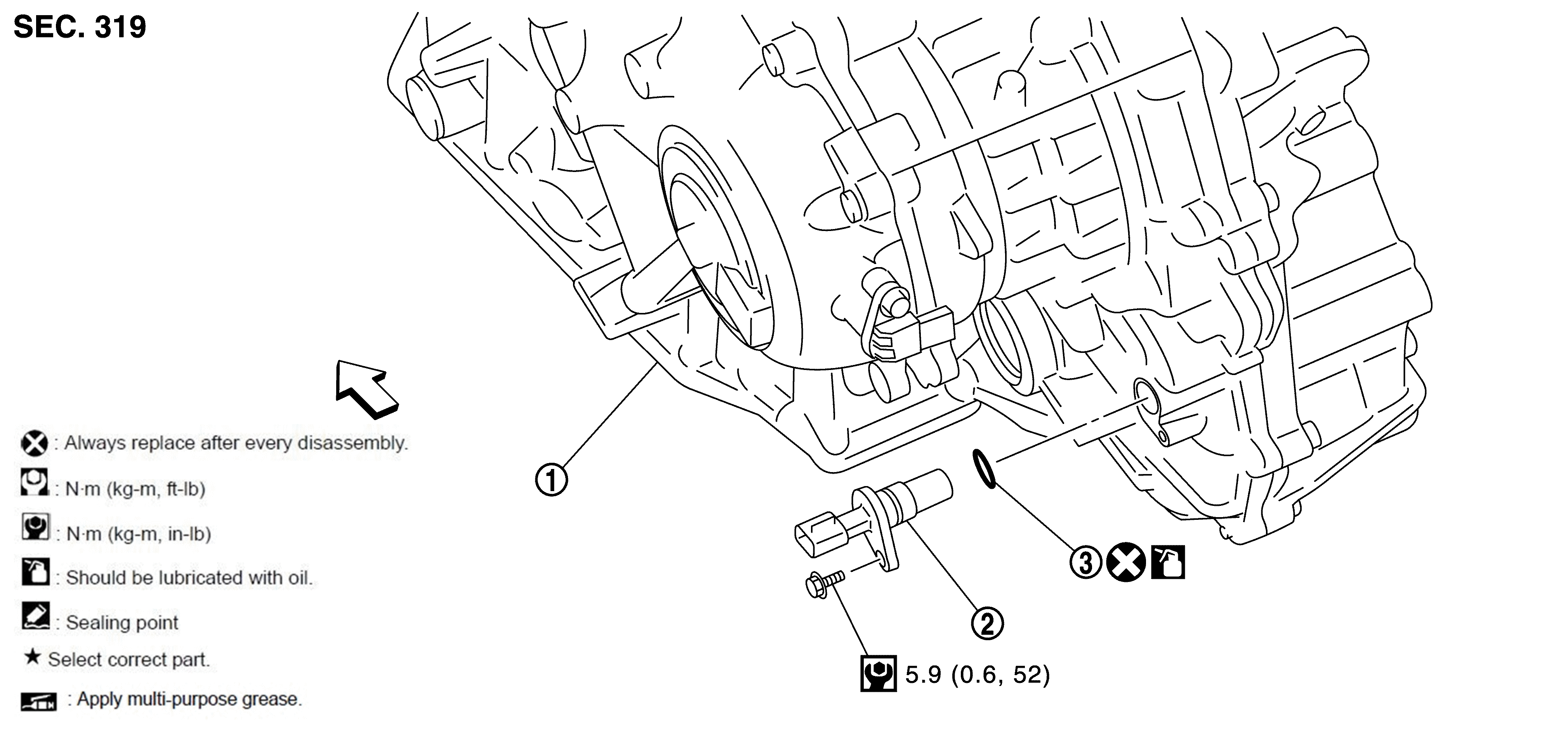

Fig 1: Output Speed Sensor Components With Torque Specification
Courtesy of NISSAN NORTH AMERICA, INC.
1.
Transaxle assembly
2.
Output speed sensor
3.
O-ring
Vehicle front
Courtesy of NISSAN NORTH AMERICA, INC.
