Exploded View

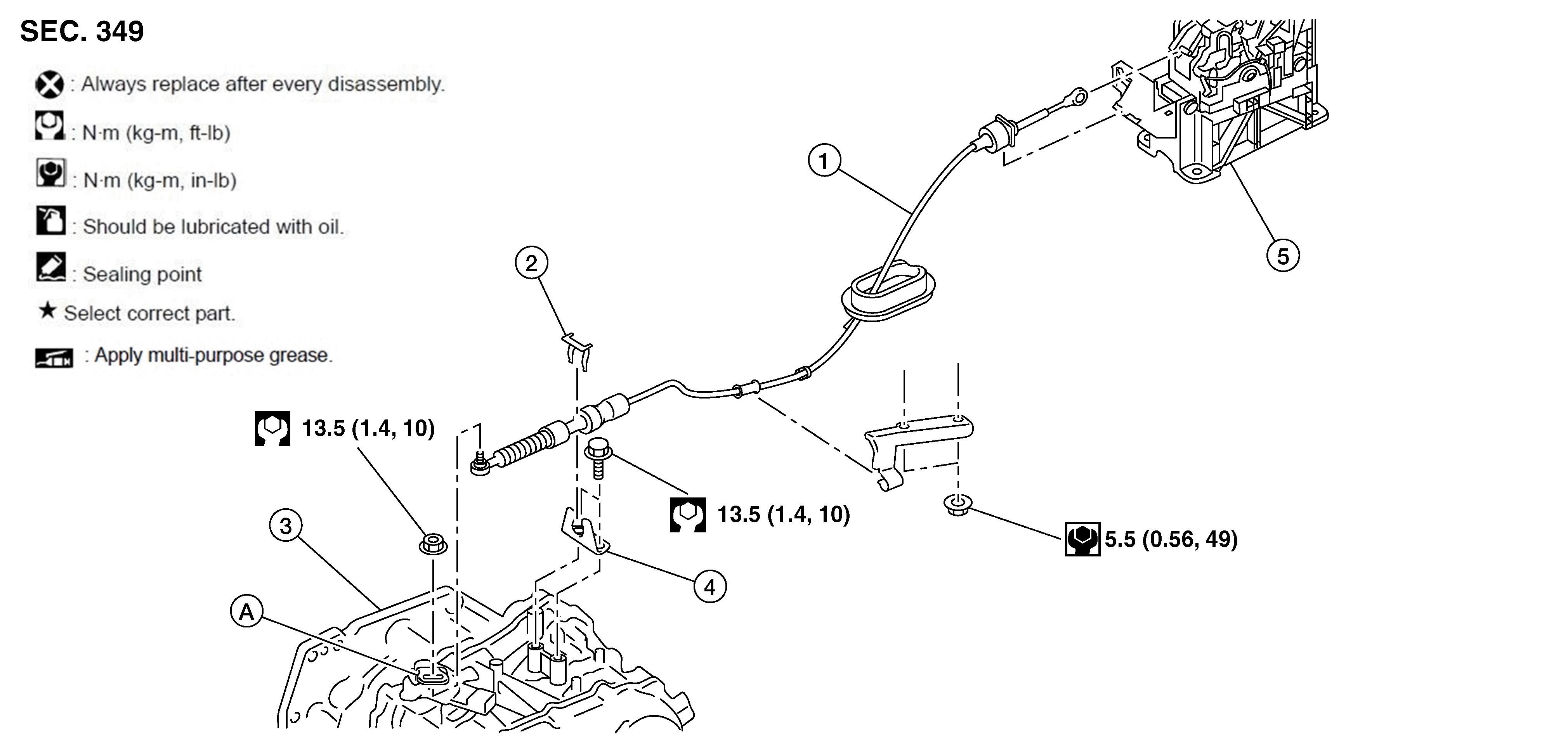

Fig 1: Control Cable Components With Torque Specification
GNSAWDIA1521Z-521Courtesy of NISSAN NORTH AMERICA, INC.

1.

Control cable

2.

Lock plate

3.

Transaxle assembly

4.

Bracket A

5.

CVT shift selector assembly

A.

Manual lever
